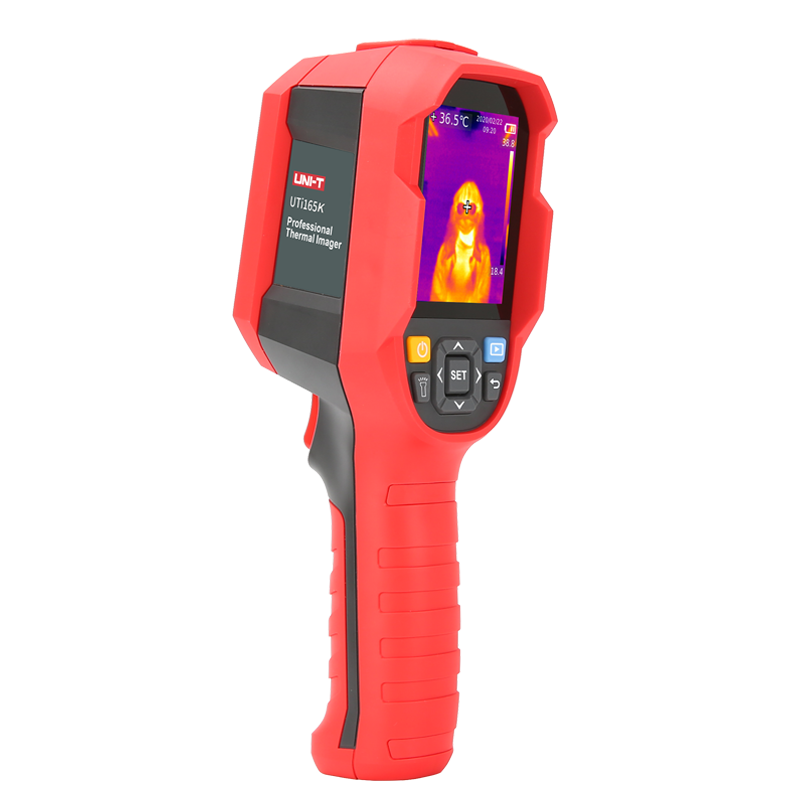

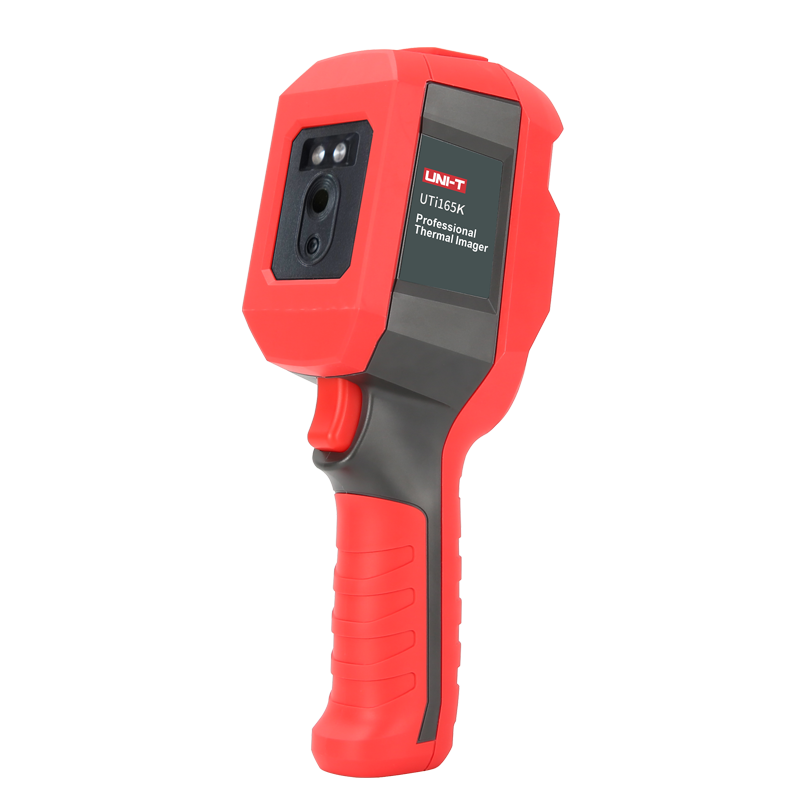

UTi165K EST Thermal Camera

The UTi165K EST thermal camera can quickly and effectively measure surface temperatures to identify elevated body temperature. It can also be mounted on a tripod and set in public locations, such as schools, shopping malls, airports, and other high traffic areas. The thermal camera comes with PC software that supports data review, analysis, and report sharing. It also supports real time projection to display the image and data on a large monitor, along with automatic tracking and alarm for high temperatures.

Contact/Get a Quote

Overview

Specifications

Product Specifications of UTi165K

Technical Data

• IR resolution (Pixels): 160×120
• Display: 2.8” TFT LCD (320×240)
• Field of view (FOV): 56°×42°
• Thermal sensitivity (NETD): 50mk
• Spatial resolution (IFOV): 6.1mrad
• Frame rate: 9Hz
• Spectral range: 8~14µm
• Focus: Focus Free
• Temperature measurement range: 30~45 (86 113)
• Accuracy: ±0.5° (@25C ambient temperature)
• Emissivity: 0.01~1.00 adjustable (0.95 default)

Functions

• Color palettes: 7 (Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC)
• Image modes: Thermal, Visual Image, Fusion
• On screen analyzer: 3 Points
• Digital camera resolution: 640×480
• Hi/Lo temperature alarm: Icon, LED flashlight
• Software analysis: PC

General Characteristics

• Battery: Fixed Li ion battery (3.6V 5000mAh)
• Battery operation time: 6 hours
• USB: Type C
• Storage: 32G Micro SD card
• Image/Video storage format: BMP
• Certificates: CE, FCC, RoHS
• Product net weight: 910g
• Product size: 236mm × 75.5mm × 86mm

Packing Details

• Standard accessories: Type C USB cable, Micro SD card, English manual
• Standard individual packing: Gift box
• Standard Qty per carton: 10 pcs
• Standard carton size: 500mm × 315mm × 295mm
• Standard carton G.W.: 2.2kg
