Multimedia All-in-One PC

Model No: FC-4000

Introduction:

The Multimedia All-in-One PC is a classic product listed in China MOE since 2015, which is an integrated teaching podium with wall mount cabinet design. The EIBOARD FC-4000 series is the Top 1 expert that applies modular design. It combines a computer, speakers, intelligent central controller, digital visualizer, keyboard with touch pad, 2.4G+ remote with wireless microphone. It works with interactive whiteboards and projectors, achieving all the needs of a multimedia classroom, changing the traditional multimedia teaching equipment fragmented mode in a highly integrated way.

Product Features

• Multimedia All-in-One PC: Specially designed for integrated multimedia digital classrooms.
• Good Compatibility for Different Board Solutions: Compatible with all types of interactive boards/displays and projectors; can be connected with multiple external devices.

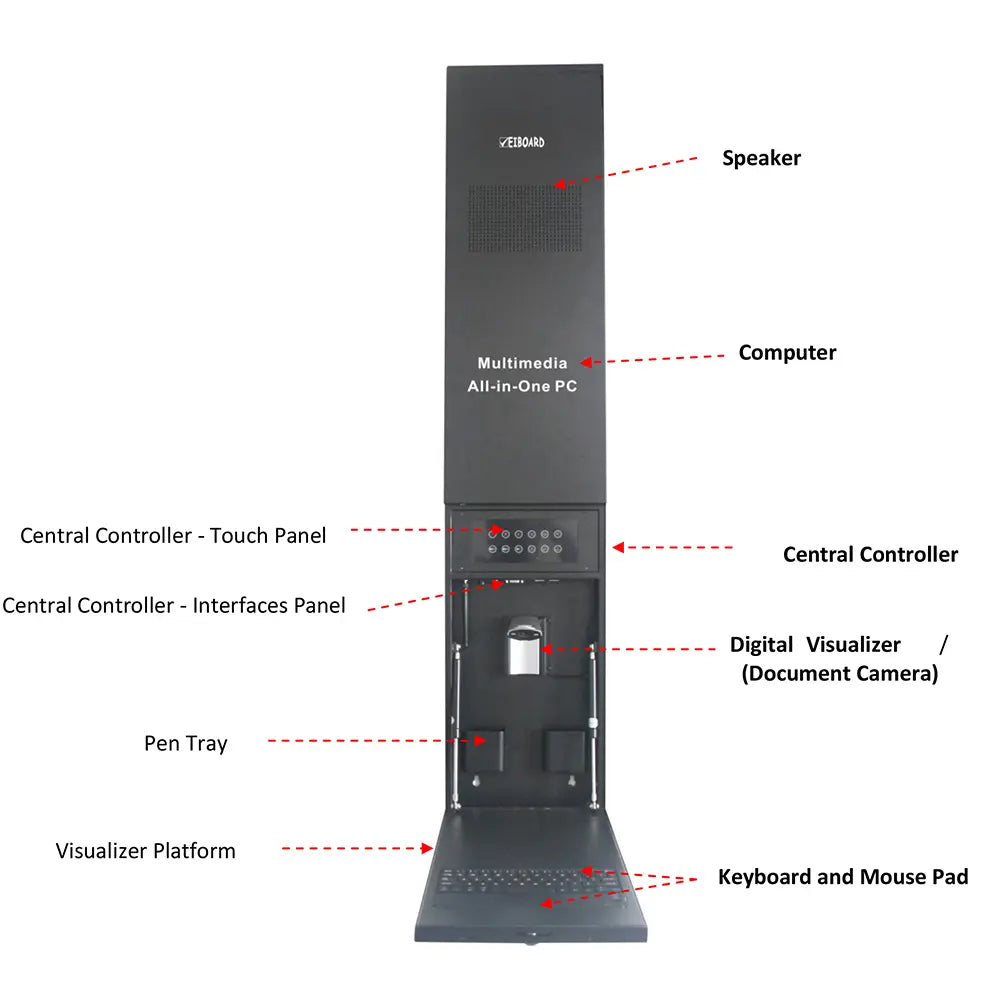

• Highly Integrated to Save Space: With all necessary parts for multimedia classrooms, including an in-built OPS computer, speakers, visualizer, central controller, keyboard, mouse pad, and all-in-one remote with mic.
• OEM/ODM and Wide Application: Accepts customization into different sizes and colors according to different solutions; widely used for education, training, IT, and AV solutions.

Specifications

Structure:

• Dimension: 1280 x 290 x 80 mm
• Color: Black/White
• Features: Slim and compact design, no cables exposed after close.

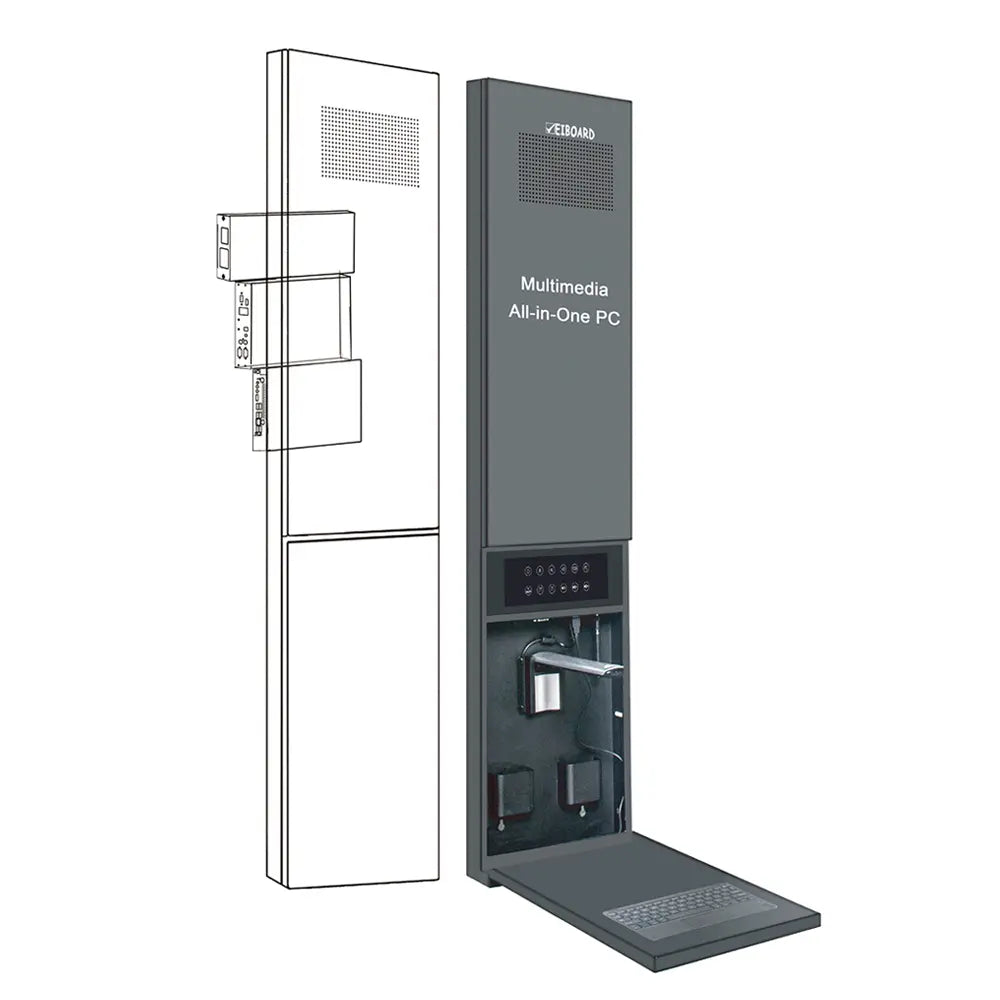

• Modularization Design: OPS PC, power supply, and central controller all with pluggable design.
• Lock System: Mechanical keys.

Interfaces

• RJ45 x 1
• Power in x 1
• Power out x 1
• RS232 x 1
• IR
• USB 2.0 x 8
• USB 3.0 x 2
• Audio in x 2
• Audio out x 3
• HDMI in x 1
• HDMI out x 2

PC Structure

• PC Structure: OPS PC
• CPU: Intel I3 (I5/I7 Optional)
• Storage: RAM: 4GB (8G Optional); SSD 128G (HDD 1T for optional)
• OS: Pre-install Windows 7/10
• WIFI: Included

Speaker

• Power: 20W x 2, 4?, Sensitivity 85DB, Frequency response: 100HZ-18KHZ

Central Controller

• Control Panel: Touchable panel
• Function Buttons: Power on/off, Mute, Volume +/-, Projector on/off, PC on/off
• Ports: USB x 4, HDMI, Audio out, MIC
• Interfaces: Downward design

Quick Start

• One touch to power on/off the complete system
• Projector Protection: Power-off postpone
• Wireless MIC: Included

Visualizer

• Resolution: CMOS camera, 500W/800W pixel
• Scan Size: A4
• Scan Object: File, document, books, text, real objects, etc.
• Light Resource: High brightness LED, natural light
• Photo Format: JPEG, TIF, PDF, etc.
• Video Format: AVI, MPEG4, H.264, FLV
• Microphone Input: To pick up voice while video recording.

Visualizer Software Features

• Annotation function same as whiteboard software: drawing, writing, annotating, rotating, zooming…
• Take pictures
• Record videos with sound
• Scanning, support OCR
• Screen compare
• Export pictures as PDF or multi-PDF files

Keyboard

• Built-in Keyboard: Laptop Type with touch pad (Patent)

Accessory

• 2.4G+ Remote (Patent): 4-in-one function = Laser pointer, air mouse, remote controller, wireless microphone
• IR Learning: Can learn functions of other remotes by IR
• Applications: for projector, whiteboard, PC, TV, and other electronics.

Others

• Keys x 2
• Power cable x 2
• RS 232 x 1
• Mic
• QC and warranty card

Packing Info

• Packing Dimension: 1410 x 320 x 110 mm / 17 kg

Container Info

• 20' Container: 380 pcs
• 40' Container: 680 pcs
• 40HQ: 800 pcs

Weight

• N.G: 15.5 kg
• G.W: 17 kg
