LEGRAND Niky 800VA UPS, Line-Interactive VI Technology, 400W Active Power, Pseudo-Sinusoidal Waveform, 230V Input, 1x 12V 9Ah Battery, RJ11/RJ45 Protection, 3 IEC Outputs, USB Port, Dimensions 171x95x349mm, Weight 7.5kg.

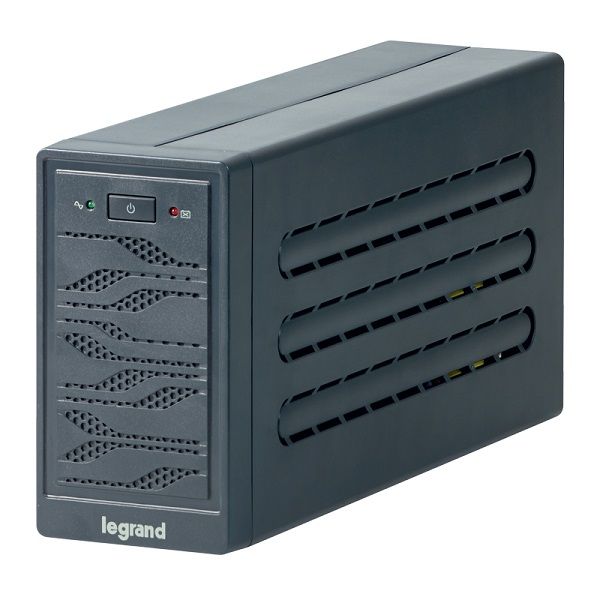

Legrand UPS Niky 800

Product Information

The Legrand UPS Niky 800 is an uninterruptible power source utilizing interactive line technology. It delivers a rated power of 800VA and is CPU-controlled, equipped with valve-regulated, hermetically sealed lead accumulator batteries to ensure a minimum uptime of 5 minutes at 80% load. The UPS includes an electronic stabilizer (AVR) that provides effective protection against mains interference and guarantees uninterrupted power supply through RJ11/RJ45 sockets, ensuring excellent protection for telephone, fax, modem, and LAN connections.

Available Versions

  • Version 3 100 03: Three IEC output sockets, 1 filtered IEC socket
  • Version 3 100 10: One standard German socket plus one IEC socket
  • Version 3 100 01: One standard German socket
  • Version 3 100 23: One French Belgium standard socket plus two IEC sockets and a USB port

Communication and Management

The UPS can be connected to a PC through the USB port, allowing for operation monitoring via free software and enabling emergency shutdown for Windows and Linux operating systems.

Status Monitoring

The NIKY 800 is managed by a microprocessor and displays the following alarms and operating modes through two status LEDs:

  • Normal operation
  • Battery-powered operation
  • Overloaded
  • Generic anomaly
  • Backup time
  • End of uptime

Technical Features

General Features

  • Nominal Power: 800 VA
  • Active Power: 400 W
  • Technology: Line-interactive VI
  • Waveform: Pseudo-Sinusoidal

Environmental Conditions

  • Operating Temperature: 0 ÷ 40 °C
  • Relative Humidity: 0 ÷ 95 % non-condensing
  • Noise Level at 1 m: < 40 dBA
  • Degree of Protection: IP20

Input Specifications

  • Input Voltage: 230 V
  • Input Frequency: 50-60 Hz ± 3%
  • Input Voltage Range: 160 V - 290 V

Output Specifications

  • Output Voltage: 230 V ± 10%
  • Output Frequency: 50/60 Hz ± 1%
  • THD Output Voltage: < 3% with linear load

Communication and Management

  • Display and Signals: Two LEDs for real-time monitoring of UPS status
  • Protection for Telephone: RJ11/RJ45
  • Remote Management: USB port

Batteries

  • Number of Batteries: 1
  • Battery Type/Voltage: 12V, 9Ah

Mechanical Features

  • Dimensions (H x L x D): 171 x 95 x 349 mm
  • Net Weight: 7.5 kg

Certifications

  • Standards: EN62040-1, EN62040-2, EN62040-3
Brand: LEGRAND
