Legrand UPS Niky 600VA, Line-Interactive Technology, 300W Active Power, 5-Minute Backup at 80% Load, USB Monitoring, RJ11/RJ45 Protection, Pseudo-Sinusoidal Waveform, CE Certified

Legrand UPS Niky 600VA, Line-Interactive Technology, 300W Active Power, 5-Minute Backup at 80% Load, USB Monitoring, RJ11/RJ45 Protection, Pseudo-Sinusoidal Waveform, CE Certified

LEGRAND

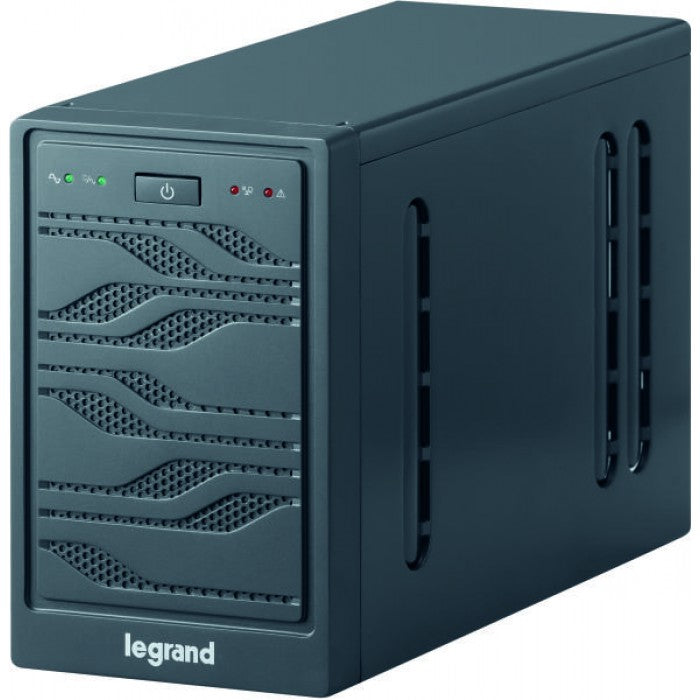

Legrand UPS Niky 600

Product Information

The Legrand UPS Niky 600 model is an uninterruptible power supply (UPS) utilizing interactive line technology. It delivers a rated power of 600VA and is CPU-controlled. This UPS is equipped internally with valve-regulated, hermetically sealed lead accumulator batteries, ensuring a minimum uptime of 5 minutes at 80% of the load. An electronic stabilizer (AVR) provides effective protection for connected loads against any interference in the electrical mains. Additionally, it guarantees an uninterrupted power supply through RJ11/RJ45 sockets, offering excellent protection for telephone, fax, modem, and LAN.

Available Versions

  • Version 3 100 02: Three IEC output sockets, 1 filtered IEC socket
  • Version 3 100 09: One standard German socket plus one IEC socket
  • Version 3 100 00: One standard German socket
  • Version 3 100 22: One French-Belgium standard socket plus two IEC sockets and USB

Monitoring and Management

The UPS can be connected to a PC through the USB port, allowing users to monitor its operation with free software and perform an emergency shutdown of Windows and Linux operating systems. The NIKY 600 is managed by a microprocessor and can display the following alarms and operating modes through two status LEDs:

  • Normal operation
  • Battery-powered operation
  • Overloaded
  • Generic anomaly
  • Backup time
  • End of uptime

Standards Compliance

The NIKY 600 Static Uninterruptible Power Supply bears the CE marking, pursuant to Directives 73/23, 93/68, 89/336, 92/31, and 93/68. It is designed and built in compliance with the following standards:

  • EN 62040-1: General and safety requirements for UPSs used in areas that are accessible to the operator
  • EN 62040-2: Electromagnetic Compatibility requirements (EMC)
  • EN 62040-3: Performance and test method requirements

Technical Features

  • Nominal power (VA): 600
  • Active power (W): 300
  • Technology: Line-interactive VI
  • Waveform: Pseudo-Sinusoidal

Environmental Conditions

  • Operating temperature (°C): 0 ÷ 40
  • Relative humidity (%): 0 ÷ 95 % non-condensing
  • Noise level at 1 m (dBA): < 40
  • Degree of protection: IP20

Input Specifications

  • Input voltage: 230 V
  • Input frequency: 50-60 Hz ± 5%
  • Input Voltage Range: 160V-290V

Output Specifications

  • Output voltage: 230V ± 10%
  • Output frequency (nominal): 50/60 Hz ± 1%
  • THD Output voltage: < 3% with linear load

Communication and Management

  • Display and Signals: Two LEDs to monitor the status of the UPS in real time
  • Protection for the telephone: RJ11/RJ45
  • Remote Management: USB port

Batteries

  • Number of batteries: 1
  • Battery series Type/Voltage: 12V, 7Ah

Mechanical Features

  • Measurements (H x L x D in mm): 171 x 95 x 349
  • Net Weight (kg): 7

Certifications

  • Standards: EN62040-1, EN62040-2, EN62040-3
Brand: LEGRAND
