Nsendato HDMI Extender - 1080p/60Hz, 60m Transmission, Plug & Play, Two-Way Audio Output, Compatible with Windows, Mac, Linux, IR Remote Control Support

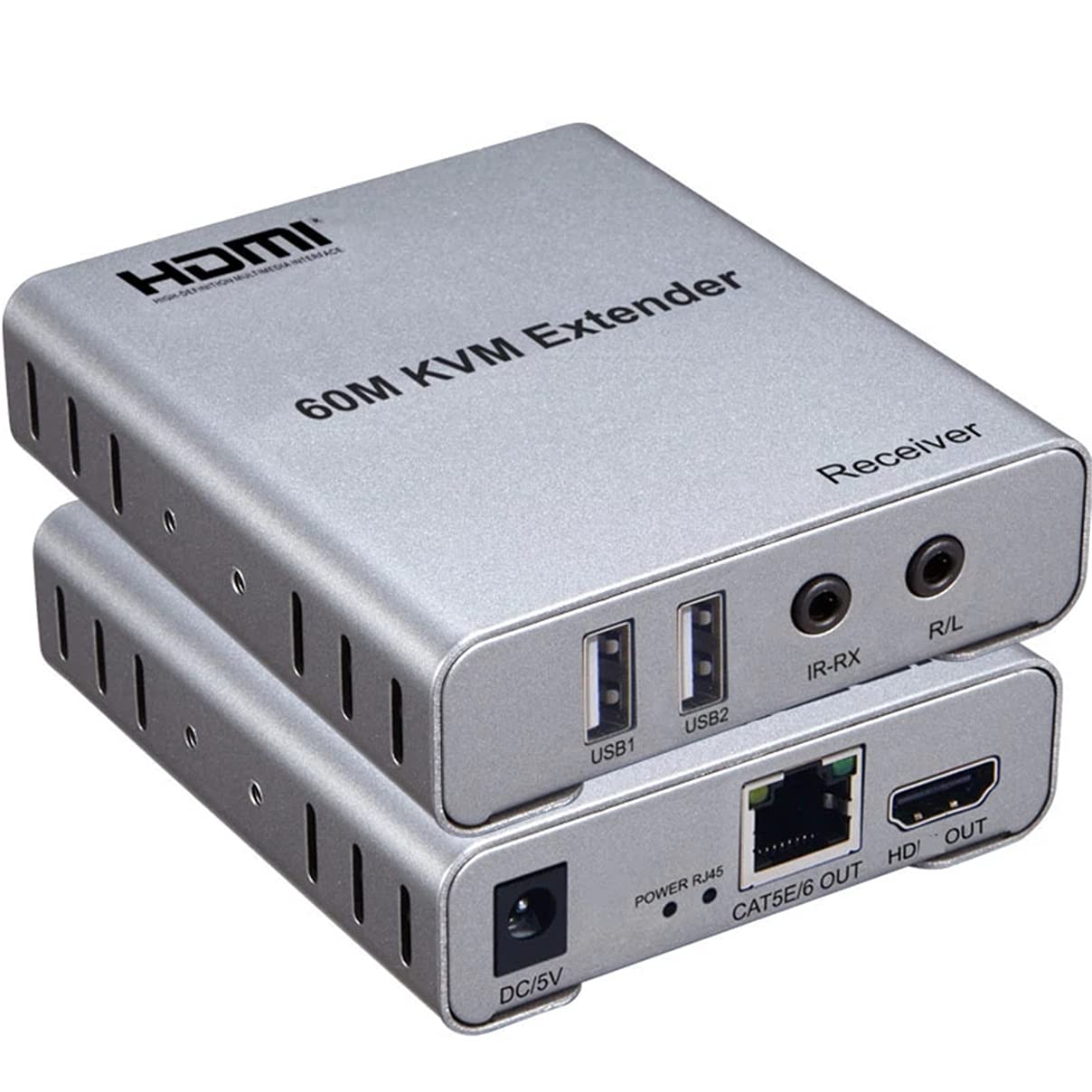

Nsendato HDMI Extender - 1080p/60Hz
Enhance your multimedia experience with the Nsendato HDMI Extender. This device allows for seamless connectivity and transmission of high-definition signals up to 60 meters using single CAT5e or CAT6 cables, cutting down on costs while ensuring quality performance.
Key Features
- Plug and Play Multi-System Compatibility: Supports multiple systems such as Windows, MAC, Vista, and Linux without the need for driver installation—just plug it in and use it.
- Versatile HDMI Compatibility: Suitable for HDMI output devices like monitors, projectors, TV stations, computers, notebooks, set-top boxes, video recorders, and Blu-ray players.
- Two-Way Audio Output: Both the transmitter and receiver support 3.5mm left and right channel audio output for easy connection to speakers, headphones, and headsets.
- Built-In Chip Smart Buffer: Utilizes an original imported smart chip for long-distance, lossless transmission up to 60 meters, ensuring stable and flicker-free performance.
- Synchronous Audio and Video Transmission: Supports simultaneous audio transmission while zooming in on the screen.
- EDID Smart Switch Button: This button allows switching between EDID supporting 720P and 1080P (default is 1080P EDID at boot).
- Ideal for Various Occasions: Perfect for use in teaching environments, financial institutions, control systems, telecommunication security places, and computer room management.
- Cost-Effective Solution: Designed for long-distance transmission of high-definition signals using single CAT5e or CAT6 cables instead of expensive HDMI cables.
Specifications
- Support Video Resolution: Up to 1080p/60Hz
- Transmission Distance: Up to 60 meters
- Audio Output: Both TX and RX support 3.5mm left and right audio output
- Low Power Consumption: Operates with low power consumption and low temperature for high safety
- Remote Control Support: Includes support for IR remote control
- USB Mouse and Keyboard Extension: Supports USB mouse and keyboard extension
- Length of CAT-6/CAT-5E Cable: Up to 60 meters
- HDMI-Compatible Input: 1080p/1080i/720p/576p/576i/480p/480i
- HDMI-Compatible Output: 1080p/1080i/720p/576p/576i/480p/480i
- Max Bandwidth: 150MHz
- Max Baud Rate: 4.5Gbps
- Input Video Signal: 0.5~1.5Volts p-p
- Output DDC Signal: 5Volts p-p (TTL)
- Input/Output HDMI Cable Distance: ?10m AWG26 HDMI standard cable
- TX Max Working Current: 300mA
- RX Max Working Current: 300mA
- Power Adapter Format: Input: AC (50Hz, 60Hz) 100V-240V; DC 5V/1A
Package Includes
- 1 x HDMI Transmitter
- 1 x HDMI Receiver
- 1 x IR Receiver Cable
- 1 x IR Transmitter Cable
- 2 x 5V Power Adapters
- 1 x Manual
