Extron HAE 100 HDMI Audio De-Embedder - HDMI audio de-embedding, analog stereo and digital S/PDIF outputs, HDCP compliant, 6.75 Gbps data rate, 1080p/60 or 1920x1200 resolution, 1U quarter rack width enclosure.

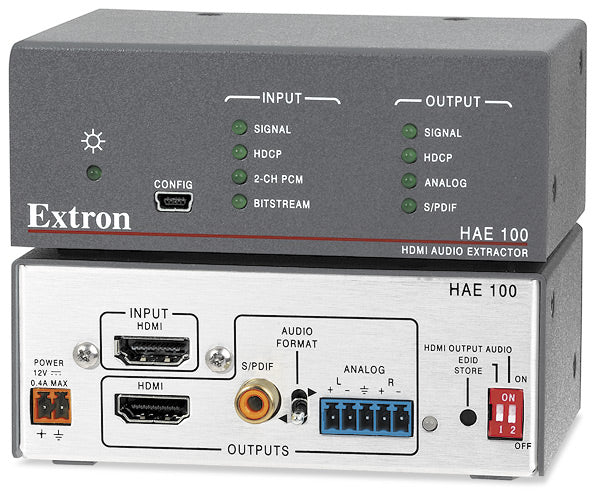

Extron HAE 100 HDMI Audio De-Embedder

The Extron HAE 100 is an audio de-embedder that extracts audio from the HDMI signal and provides outputs for analog stereo and digital S/PDIF audio. The HAE 100 supports data rates up to 6.75 Gbps for compatibility with HDMI Deep Color up to 12-bit. It is HDCP compliant and compatible with HDTV 1080p/60 or computer-video resolutions up to 1920x1200. The HAE 100 is equipped with several integrator-friendly features, including a buffered HDMI video output with EDID Minder® for simplified EDID management between the input source and the display, plus input cable equalization and comprehensive LED status display.

EDID Minder® automatically manages EDID communication between the input source and the display, ensuring the source powers up properly and reliably delivers content to the display. Input cable equalization compensates for weak source signals or signal loss when using long input cable assemblies.

LEDs on the front panel offer comprehensive, real-time device status monitoring, including HDMI input/output and audio output signal presence, HDCP authentication, and whether the extracted audio is two-channel PCM or encoded bitstream audio for Dolby® Digital or DTS® Digital Surround. A mini USB port on the front panel provides convenient access for device configuration. The HAE 100 is housed in a compact 1U, quarter rack width metal enclosure.

Features

  • HDMI audio de-embedding with analog stereo and digital S/PDIF audio outputs — The HAE 100 offers the flexibility to support analog stereo, PCM audio, or Dolby® or DTS® multi-channel surround sound in systems without HDMI.
  • Input: HDMI connector
  • Outputs: HDMI connector, balanced/unbalanced analog audio on 5-pole captive screw connector, S/PDIF digital audio on coaxial RCA connector
  • Supported HDMI specification features include data rates up to 6.75 Gbps and Deep Color up to 12-bit
  • HDCP compliant
  • De-embeds audio with or without HDMI output connected
  • Simultaneous analog stereo and digital S/PDIF outputs when de-embedding two-channel PCM audio
  • Selectable HDMI audio pass-through — The user can control whether the HDMI output passes audio by setting a DIP switch on the rear panel.
  • EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
  • Key Minder® continuously verifies HDCP compliance — Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source signal to one or more displays.
  • Automatic input cable equalization
  • Comprehensive, real-time status LED indicators for troubleshooting and monitoring — Front panel LEDs verify the presence of HDMI input/output and audio output signals, HDCP authentication, and the de-embedded audio format.
  • Front panel USB configuration port
  • Rack-mountable 1U, quarter rack width metal enclosure
  • Includes LockIt® HDMI cable lacing brackets
  • Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.

Specifications

HAE 100 Video

  • Maximum data rate: 6.75 Gbps (2.25 Gbps per color)
  • Maximum pixel clock: 225 MHz
  • Resolution range: Up to 1920x1200 or 1080p @ 60 Hz, 12-bit color
  • Formats: RGB and YCbCr digital video
  • Standards: DVI 1.0, HDMI, HDCP 1.2, EDID 1.3

Video Input

  • Number/signal type: 1 single link HDMI
  • Connectors: 1 female HDMI type A
  • Equalization: Automatic for up to -12 dB of cable loss
  • Input cable length: Up to 25' (7.6 m)

Video Output

  • Number/signal type: 1 single link HDMI
  • Connectors: 1 female HDMI type A
  • Output cable length: Up to 15' (5 m)

Audio

  • S/N: >90 dB, balanced, at maximum output
  • Audio input: Source formats - PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital EX, DTS Digital Surround 5.1, DTS?ES Matrix 6.1, DTS?ES Discrete 6.1
  • Audio output — analog:
    • Number/signal type: 1 stereo balanced/unbalanced
    • Connector: (1) 3.5 mm captive screw connector, 5 pole
    • Impedance: Stereo: 50 ohms unbalanced, 100 ohms balanced
    • Maximum level (Hi-Z): >16 dBu, balanced; >7.8 dBV, unbalanced at 1% THD+N
  • Audio output — digital:
    • Number/signal type: 1 S/PDIF
    • Connectors: 1 female RCA jack (tip, ring)
    • Impedance: 75 ohms

Control/Remote

  • USB control ports: 1 front panel female mini USB B
  • USB standards: USB 2.0, low speed
  • Program control: Extron Simple Instruction Set (SIS™)

General

  • External Power supply: External
  • Input: 100-240 VAC, 50-60 Hz
  • Output: 12 VDC, 1 A, regulated
  • Power input requirements: 12 VDC, 0.4 A
  • Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
  • Cooling: Convection, no vents
  • Thermal dissipation:
    • 115 VAC, 60 Hz: 7.3 BTU/hr
    • 240 VAC, 50 Hz: 8.1 BTU/hr
  • Mounting:
    • Rack mount: Yes, with optional 1U rack shelf
    • Furniture mount: Yes, with optional mini under-desk mounting kit
  • Enclosure type: Metal
  • Enclosure dimensions: 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide) (4.2 cm H x 11.0 cm W x 7.6 cm D)
  • Product weight: 0.6 lbs (0.3 kg)
  • Shipping weight: 2 lbs (1 kg)
  • Vibration: ISTA 1A in carton (International Safe Transit Association)
  • Regulatory compliance:
    • Safety: CE, c-UL, UL
    • EMI/EMC: CE, C-tick, FCC Class A, ICES, KCC, VCCI
  • Product warranty: 3 years parts and labor

Note: All nominal levels are at ±10%. Specifications are subject to change without notice.

Brand: EXTRON
