EDIMAX

Edimax Smart Wi-Fi Roaming: Gemini Series

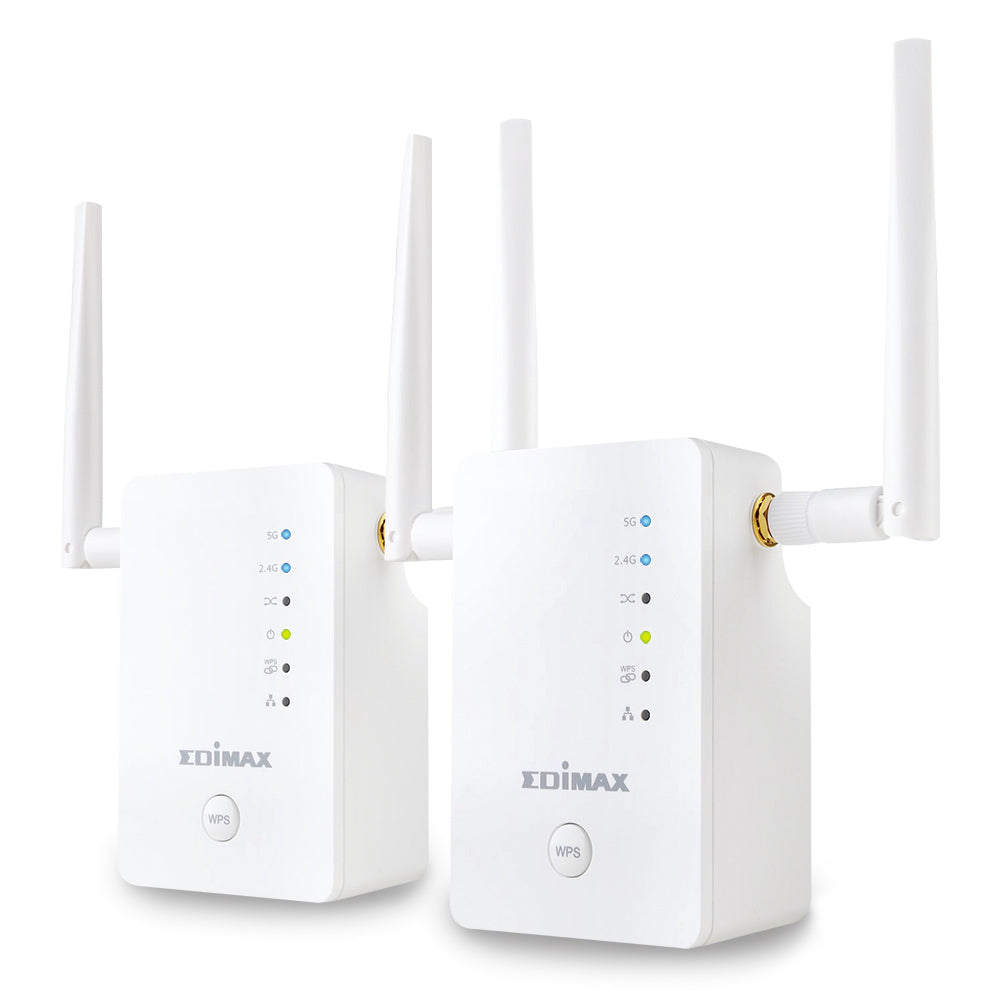

Being different to a general range extender network configuration, Gemini RE11 is a whole home Wi-Fi system that uses multiple access points to provide your home with fast, reliable coverage for a seamless roaming connection.

Key Features

  • Plug and Play in AP-Mode: plug and play with auto-grouping management.
  • Smarter Wi-Fi: Fast, reliable roaming for a seamless connection.
  • Stronger Signal: Always connected to the best Wi-Fi signal.
  • Faster Speed: Upgraded 11ac dual-band Wi-Fi ideal for video streaming with high-speed capacity up to 1200Mbps (N300 + AC867Mbps).
  • Universal Compatibility: Works with any router, zero configuration.
  • Smart iQ Setup: Smartphone, tablet or web-browser setup with no CD or computer required.
  • Green Wi-Fi Power Switch: Switches between normal & green Wi-Fi power and turn off when not in use.
  • Signal Strength LED Indicator: Finds the best location for optimal Wi-Fi coverage.

Product Overview

Gemini RE11 in AP-Mode is designed to be super easy to configure with plug and play auto-grouping management. Moreover, additional Gemini RE11S can be easily added to get even better whole-home Wi-Fi coverage. The first RE11S plugs into your existing cable or DSL modem. Additional RE11S just need to be powered!

Fast, reliable roaming for a seamless connection while you move around your home. Hassle-free while switching SSIDs (network name). The RE11S uses the same SSID and switches automatically and intelligently.

Performance

Upgrade your single-band 2.4GHz Wi-Fi to 802.11ac dual-band Wi-Fi with 5GHz ideal for video streaming. Get the latest 11ac technology with high-speed capacity up to 1200Mbps (N300 + AC867Mbps), and extends both 2.4GHz and 5GHz wireless connections at the same time.

Just plug in the Edimax RE11S to upgrade your single-band 2.4GHz Wi-Fi to dual-band with better coverage, without replacing your router and with no configuration required.

Smart iQ Setup

Features user-friendly browser-based iQ Setup for smart, automatic and quick installation. iQ Setup automatically detects the available Wi-Fi networks nearby and helps you establish a connection in a few seconds.

Compatibility and Management

Universal compatibility and easy web-based iQ Setup for quick and easy installation.

Designed with a detachable antenna, to provide flexibility and high performance connections for your wireless network.

Energy Efficiency

Featuring a new hardware switch to adjust between normal and green Wi-Fi transmit power (the strength of the Wi-Fi signal), or switch off the power with one click. If you only need Wi-Fi in a smaller house, you can switch to green mode to reduce power by 75% and conserve energy.

Signal Strength Indicator

Designed with a signal strength LED which lets you see the Wi-Fi signal strength received from the router and guides you to find the best setup location.

Specifications

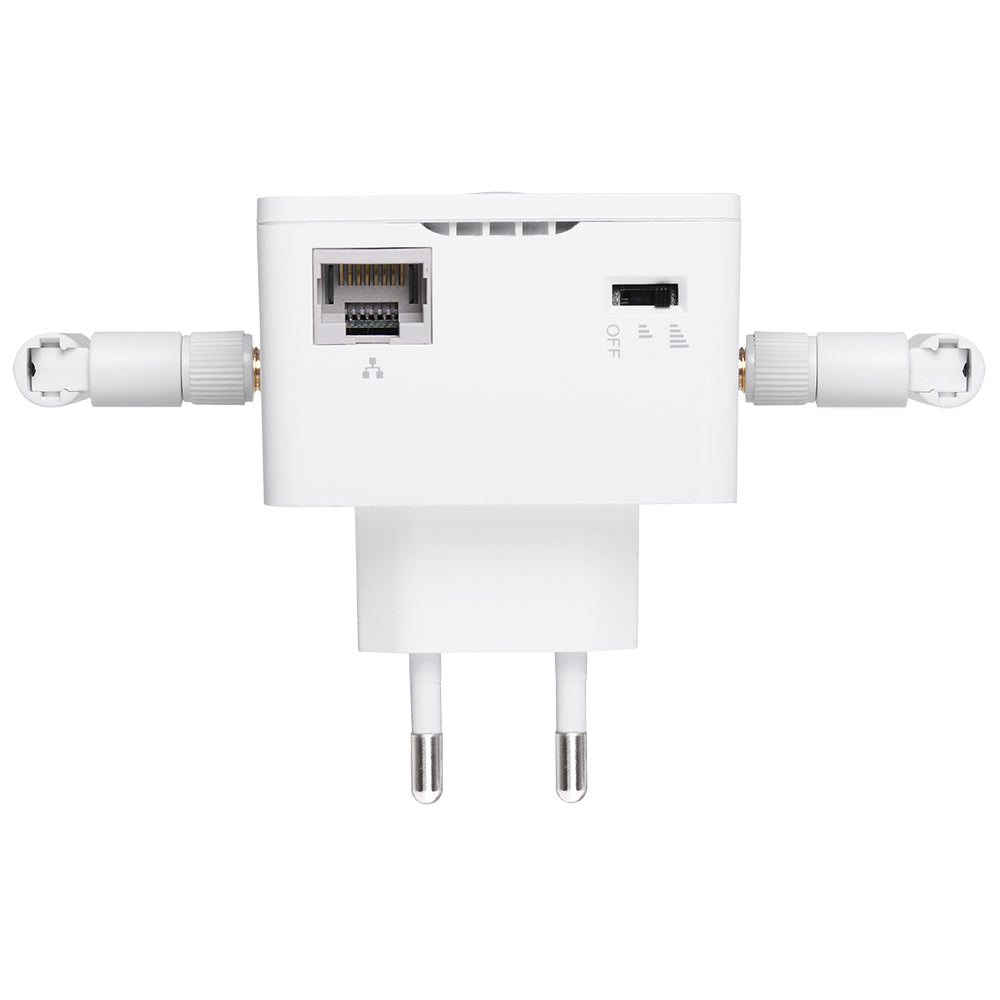

  • Interface: 10/100/1000Mbps Ethernet LAN port, LED Indicator: 5GHz, 2.4GHz, Roaming, Power, WPS, LAN, 1 x Slide switch, 1 x AC plug (EU, UK, US, or AU).
  • Button: WPS button.
  • Power Adapter: Built-in 5V, 1.5A power module.
  • Antenna: 2 x External detachable antennas.
  • Dimensions: 59 (W) x 91 (H) x 40 (D) mm (power plug & antennas are excluded).
  • Weight: 130g.

Wireless Standards

  • Standards: IEEE 802.11ac (up to 867Mbps), IEEE 802.11n (up to 300Mbps), IEEE 802.11a (up to 54Mbps), IEEE 802.11g (up to 54Mbps), IEEE 802.11b (up to 11Mbps).
  • Frequency: 5GHz and 2.4GHz concurrent dual-band.
  • Maximum Data Speed: 5GHz: up to 867Mbps, 2.4GHz: up to 300Mbps.
  • Security: 64/128-bit WEP, WPA-PSK and WPA2-PSK encryption, WPS (Wi-Fi Protected Setup) Configuration.

Certification

CE, FCC, IC, RoHS.

Management

Multi-language user interface, firmware upgradable, Smart iQ Setup, no CD required.

System Requirements

Existing wireless home network (2.4GHz/ 5GHz) for Wi-Fi extender/Wi-Fi bridge mode, or Cable/xDSL modem router for access point mode. Mobile device or computer with IEEE802.11ac/ a/ b/ g/ n Wi-Fi capability and web browser for software configuration (Internet Explorer, Google Chrome, Firefox, Opera or Safari latest version).

Environment

Operating Temperature: 0?~40? (32? ~104?), Operating Humidity: 10%~90% non-condensing.

Package Contents

  • One Gemini RE11S Home Roaming Wi-Fi Extender.
  • One Ethernet cable.
  • Quick installation guide.
  • CD with multi-language QIG and user manual.
  • Access key card.

Package Content

  • 2 x RE11S Wi-Fi range extenders.
  • 1 x Ethernet cable.
  • CD with multi-language QIG & user manual.
  • Quick installation guide (QIG).
  • Access key card.
