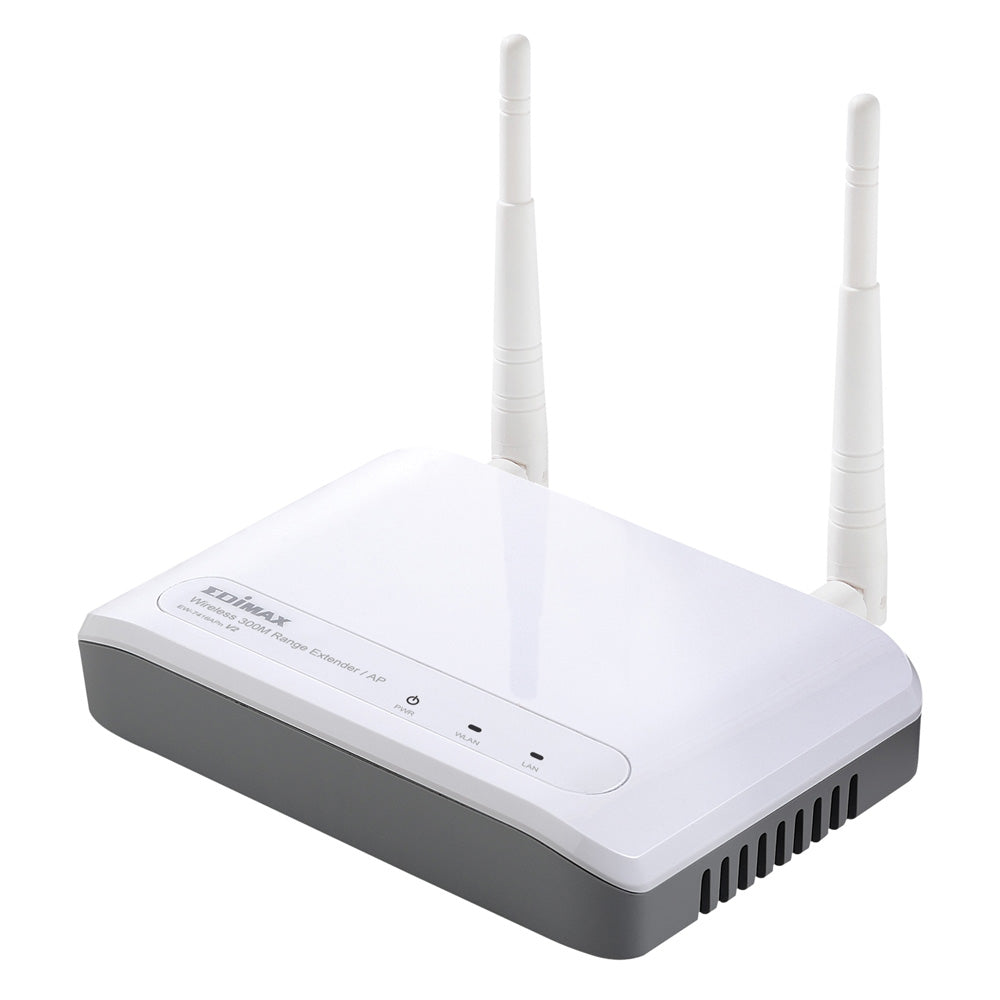

Wireless 802.11n Range Extender / Access Point

Model

• Model: EW-7416APn V2

Overview

The Wireless 802.11n Access Point acts as a bridge between the wired Ethernet and the 2.4GHz wireless IEEE 802.11b/g/n, allowing wireless client stations to access both wired and wireless network nodes.

Key Features

• Compliance: Compliant with IEEE 802.11b/g/n standards.
• Universal Repeater Mode: Extend coverage and signal strength for large areas like airports, hotels, and schools.
• Robust Wireless Security: Supports WPA, WPA2 security enhancements, and WPS configuration button.
• Web Configuration: User-friendly web interface for easy configuration.

Advanced Functionality

• Supports point-to-point and point-to-multi point bridge functions.
• WDS repeater mode, Universal repeater mode, and AP client mode.
• Supports four sets of ESSID to group different wireless networks.
• Roaming link integrity for uninterrupted connections.
• Provides MAC access control and hidden ESSID function.

Specifications

• Hardware Interface:
  • 2x3dBi Dipole Antenna.
  • Reset/WPS button.
  • LED indicators: Power, WLAN, WAN.
• Chipset: Ralink RT3052.
• Power Adapter: 5VDC, 1A.
• Output Power:
  • 11n: 15dBm ± 1dBm
  • 11g: 15dBm ± 1dBm
  • 11b: 17dBm ± 1dBm
• Memory:
  • 4 MB Flash.
  • 16 MB SDRAM.
• Security:
  • 64/128-bit WEP, WPA and WPA2.
  • MAC Filter.
• LAN Port: 10/100M UTP Port x 1.
• Humidity & Temperature:
  • Max. 10~90% (Non-Condensing).
  • Operating temperature: 10~40°C.
• System Requirements: Windows 95/98/ME/2000/XP/Vista.
• Dimensions: 30(H) x 127(W) x 96(D) mm.
• Certifications: CE, FCC.

Package Contents

• Wireless access point x 1
• CD (EZmax Setup Wizard, Multi-language Quick Installation Guide, and User Manual) x 1
• Power adapter x 1
• 3dBi antenna x 2
• Accessory kit x 1
• Quick installation guide x 1
