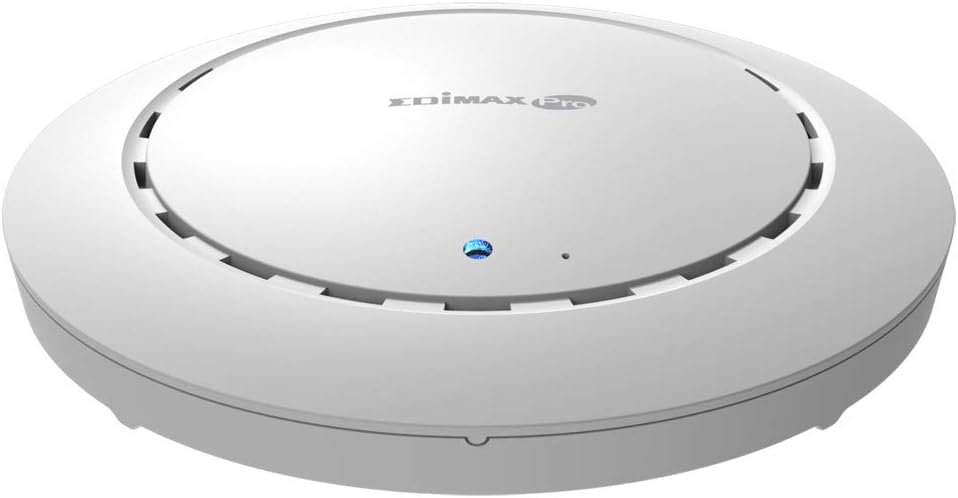

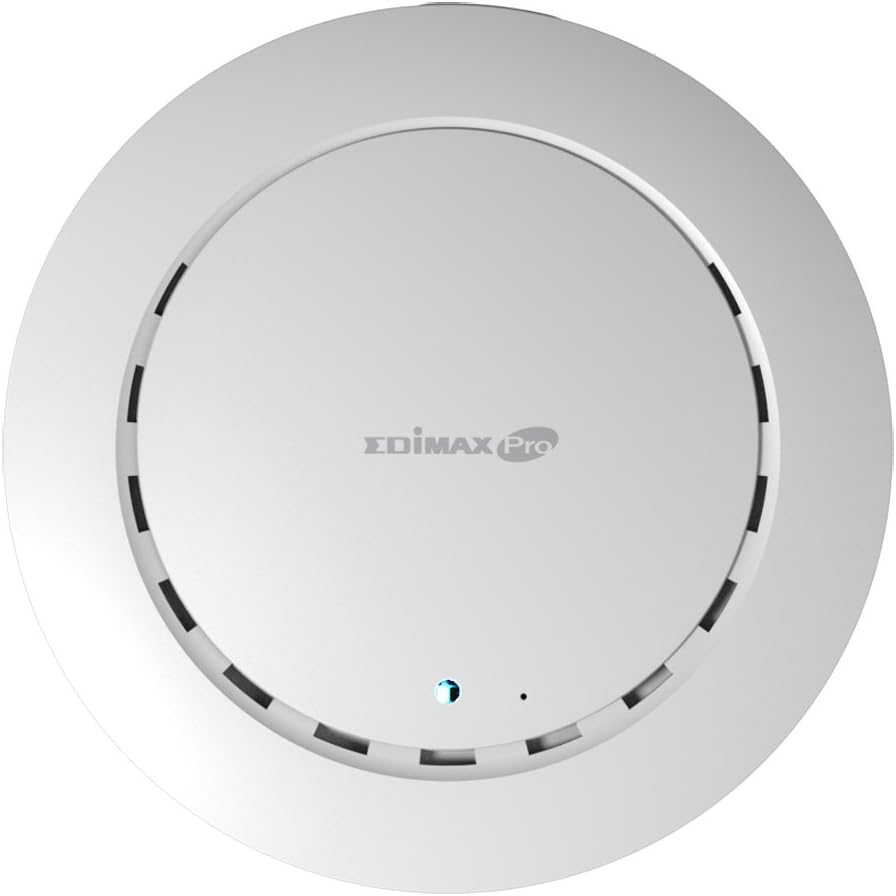

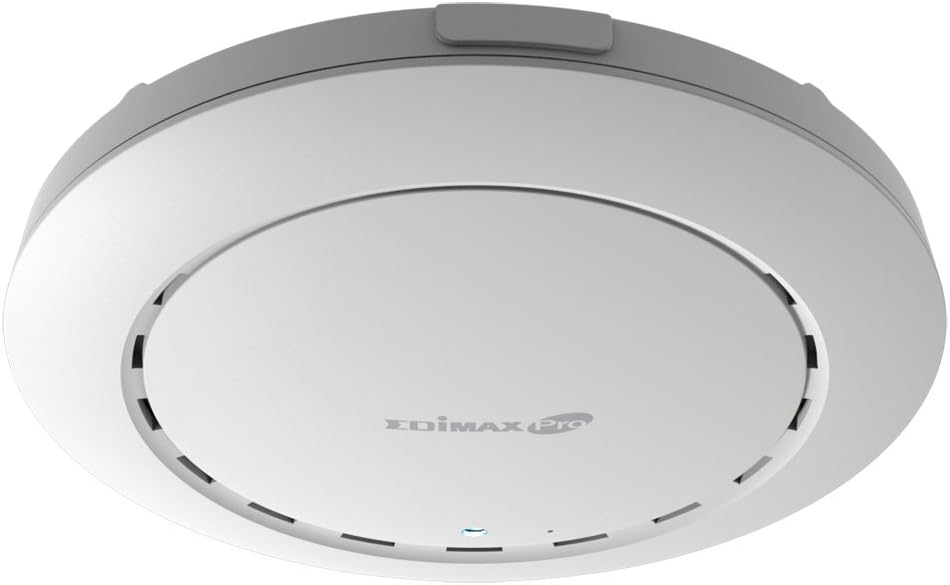

Edimax CAP1200 Ceiling Mount PoE Access Point, Dual-Band 802.11AC, Max Speed 1200Mbps, 4 x Built-In PIFA Antennas, Supports Power over Ethernet, Up to 100 Concurrent Clients, Compact Design for Business Environments.
Edimax CAP1200 Ceiling Mount PoE Access Point, Dual-Band 802.11AC, Max Speed 1200Mbps, 4 x Built-In PIFA Antennas, Supports Power over Ethernet, Up to 100 Concurrent Clients, Compact Design for Business Environments.
Edimax CAP1200 Ceiling Mount PoE Access Point, Dual-Band 802.11AC, Max Speed 1200Mbps, 4 x Built-In PIFA Antennas, Supports Power over Ethernet, Up to 100 Concurrent Clients, Compact Design for Business Environments.
Edimax CAP1200 Ceiling Mount PoE Access Point, Dual-Band 802.11AC, Max Speed 1200Mbps, 4 x Built-In PIFA Antennas, Supports Power over Ethernet, Up to 100 Concurrent Clients, Compact Design for Business Environments.

Edimax CAP1200 Ceiling Mount PoE Access Point, Dual-Band 802.11AC, Max Speed 1200Mbps, 4 x Built-In PIFA Antennas, Supports Power over Ethernet, Up to 100 Concurrent Clients, Compact Design for Business Environments.

EDIMAX

Powerful Mainstream Solution For Modern Businesses

Key Features

  • 802.11AC Dual-Band High Speed
  • Easy Installation
  • Compact & Durable Housing
  • Designed for High Density Usage
  • Multiple SSIDs for Security Management
  • Fast Roaming
  • Wide Coverage & High Sensitivity
  • Seamless Mobility
  • Power over Ethernet
  • Built-In RADIUS Server
  • Business Environments
  • Central Management

Awards

Taiwan ICT Month Innovative Elite 2014 Golden Awards

Product Overview

The CAP1200 is a powerful wireless solution designed to meet the needs of modern mainstream businesses with the latest IEEE 802.11ac technology for wireless speeds up to 1200Mbps. Industrial-grade performance and build quality combined with user-friendly operation, super-fast wireless speed, an extensive feature set, and a practical, ceiling-mount design make an ideal dual-band solution for enterprise environments.

For businesses that demand security, flexibility, and speed, the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels, and hospitals. High-density capacity for up to 100 simultaneous users is ideal for BYOD (Bring Your Own Device) workplaces or other environments with a high volume of users and wireless devices. Multiple SSIDs can be configured for different departments or user groups, and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. Fast roaming for seamless transitions between access points, Power over Ethernet support (PoE), and an intuitive web-based management interface provide flexibility for deployment and extensive management options for company MIS departments and network administrators.

When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.

Specifications

Hardware

  • LAN Interface: Giga x 1
  • PoE: 802.3af (Supports 802.3at)
  • Antenna: 4 x Built-In PIFA (2 x 2.4GHz, 2 x 5GHz)
  • Power: DC: 12V / 1A
  • Dimensions: 17.6 (D) x 3.2 (H) cm
  • Weight: 305.7g
  • Power Consumption: 11W
  • Mounting: Ceiling
  • Environmental Conditions: Operating Temperature: 0°C (32°F) to 40°C (104°F), Storage Temperature: -20°C (-4°F) to 60°C (140°F), Operating Humidity: 90% or Less

Wireless

  • Standard: 802.11 a/ b/ g/ n/ ac Concurrent Dual-Band
  • No. of Radios: 2
  • Receiver Sensitivity: ? -95dBm
  • Maximum Data Speed: 300 + 867Mbps
  • Concurrent Clients: Up to 100 (50 (2.4GHz) + 50 (5GHz))

Performance

  • Frequency Band: 2.4GHz and 5GHz
  • Transmit Power: Up to 26dBm (dependent on the band)
  • Receiver Sensitivity: Varies by standard

Security

  • Encryption: WEP / WPA / WPA2
  • Rogue AP Detection: Yes

Package Contents

  • Access Point: AC1200 Ceiling Mount PoE Access Point
  • Mounting Bracket: Ceiling-Mount and T-rail Mount Bracket Kit
  • Power Adapter: 12V / 1A Power Adapter
  • Cable: Ethernet Cable
  • CD / Quick Installation Guide: CD (User Manual & Multi-Language Quick Installation Guide) / Printed English Quick Installation Guide
Brand: EDIMAX
