EDIMAX

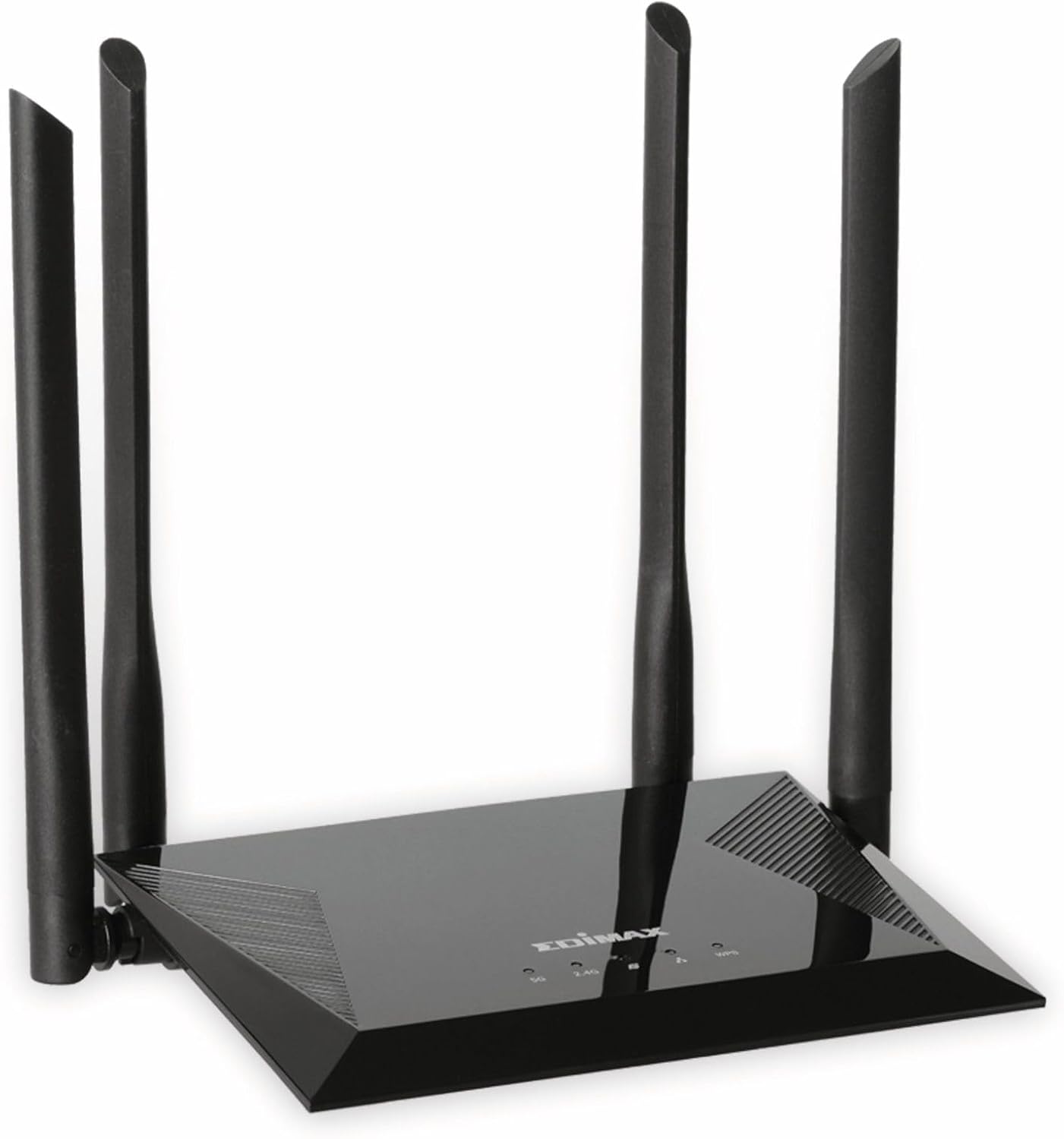

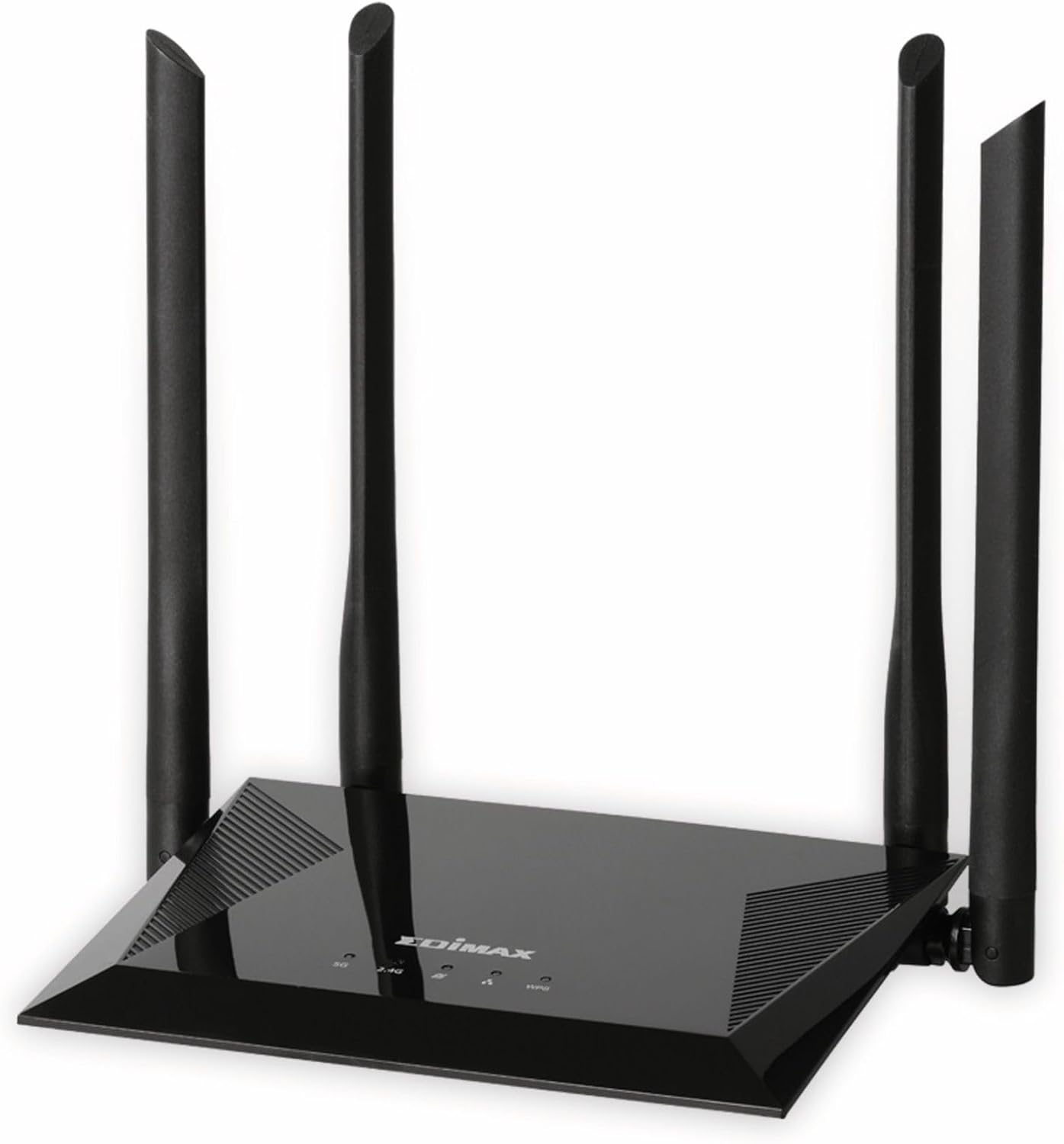

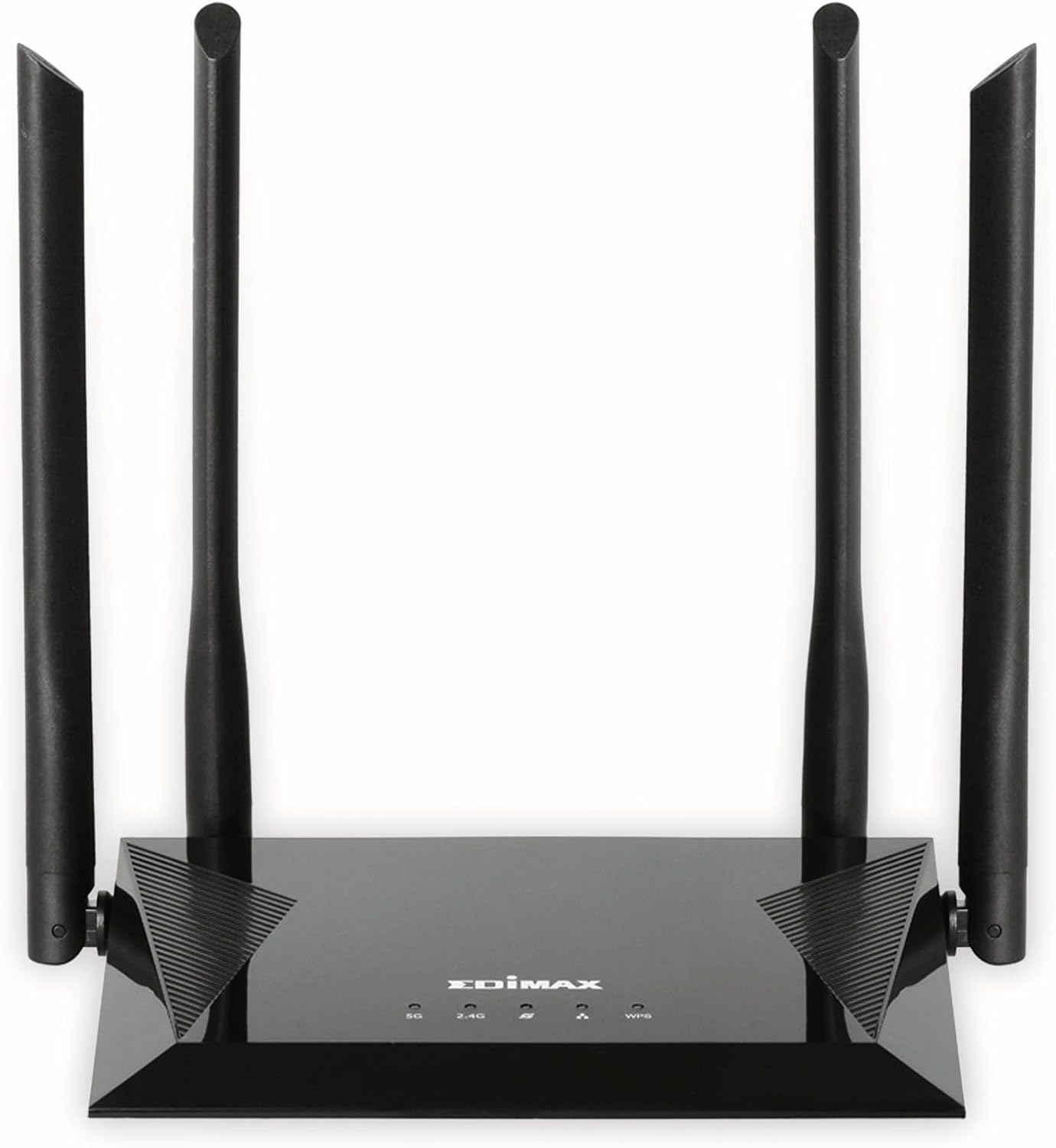

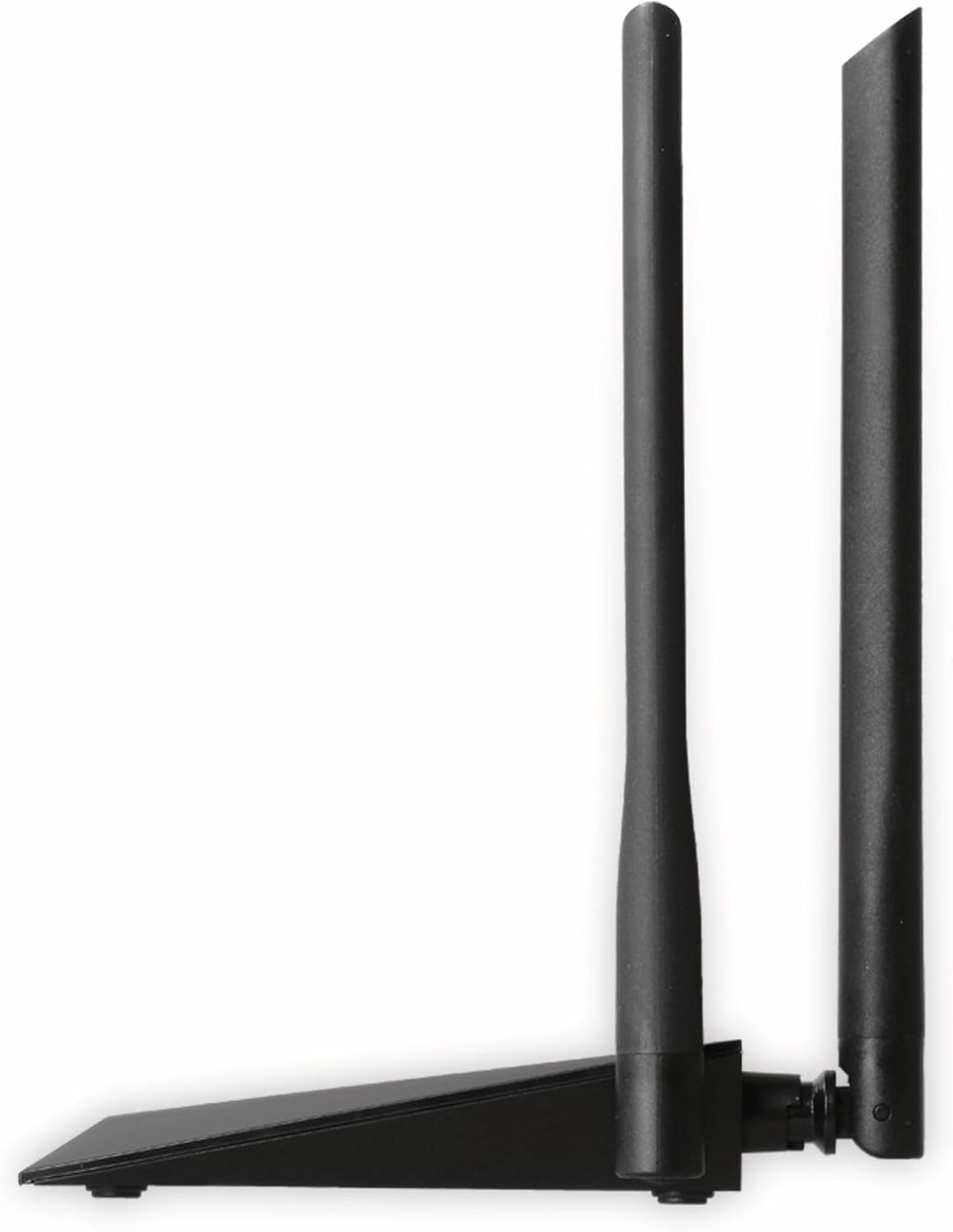

Edimax BR-6476AC 4-in-1 Wi-Fi Router

The BR-6476AC 4-in-1 router adopts the most widely used Wi-Fi 5 standard: IEEE 802.11ac and provides significantly improved coverage with four high-gain antennas. Operating as a router, access point, range extender, or WISP, the BR-6476AC’s flexibility can handle many demanding multimedia applications, making it an excellent solution for large homes or offices.

Features

  • Wi-Fi 5, AC1200: Max speed up to 300Mbps (2.4GHz) & 867Mbps (5GHz).
  • 4 High Gain Antennas: Enhance Wi-Fi signal for maximum range.
  • 4-in-1 Mode: Router, Access Point, Wi-Fi Extender, and WISP.
  • Backward Compatible: Compatible with 802.11b/g/n standards.
  • Concurrent Dual-Band: Wireless connectivity for 2.4GHz and 5GHz.
  • Smart Setup: For smart, automatic, and quick installation.
  • WPS: Easy one-click setup with Wi-Fi Protected Setup (WPS) button.

Upgrade Your Network to an 11ac Wi-Fi

The BR-6476AC upgrades your network to 11ac, which operates in both 5GHz and 2.4GHz bands. With combined wireless speeds of up to 1200Mbps, the device provides better speeds and coverage, allowing you to run multiple bandwidth-intensive applications in a large home or office. The router is also backward compatible with 802.11b/g/n to ensure compatibility with legacy Wi-Fi devices.

Concurrent Dual-Band Wi-Fi Connectivity

The BR-6476AC optimizes your Wi-Fi connectivity speed by operating both 2.4GHz and 5GHz, ensuring interference-free performance. While enjoying HD video streaming or playing online games over the 5GHz band, other tasks, such as emailing, online chatting, or web surfing can be handled well by the 2.4GHz simultaneously.

4-in-1 Mode

The BR-6476AC can work in four major modes for wireless networking, including router, access point, range extender, and WISP modes. You can use it as a router for Internet sharing, as an access point to switch a wired connection into a wireless network, extending signals as a range extender, or sharing a wireless Internet connection with all your devices. Switch modes according to your environment or needs using the easy smart setup wizard.

4 High-Gain Antennas for Maximum Coverage

Employing four external high-gain fixed antennas, the BR-6476AC provides powerful 2.4GHz and 5GHz dual-band signal strength and enhanced Wi-Fi range, offering good signal coverage across your large home or office.

Hardware Specifications

  • Interface: 1 x RJ-45 10/100 Mbps WAN port, 4 x RJ-45 10/100 Mbps LAN ports
  • Button: Reset / WPS Button
  • LED Indicators: 5G, 2.4G, WAN, LAN, WPS
  • Antenna: 4 x (2 x 2.4GHz and 2 x 5GHz) Fixed Omni Directional Antenna
  • Memory: 8 MB ROM, 64 MB RAM
  • Power Adapter: DC 12V, 1.0A
  • Dimensions: 153 (W) mm x 106 (D) mm x 24 (H) mm
  • Weight: 474g

Wireless Specifications

  • Standards: 802.11 b/g/n/ac
  • Frequency: 5GHz and 2.4GHz concurrent dual-band
  • Maximum Data Speed: 5GHz: 867Mbps, 2.4GHz: 300Mbps
  • Receive Sensitivity:
    • 11AC: 20M mode ? -57dBm, 40M mode ? -54dBm, 80M mode ? -51dBm
    • 11N: 11b_11Mbps: ? -79dBm, 11g_54Mbps: ? -68dBm, HT20_MCS7: ? -67dBm, HT40_MCS7: ? -64dBm
  • Transmit Power: 11N: 16dBm (2.4GHz), 11G: 17dBm (2.4GHz), 11AC: 13dBm (5GHz)
  • Security: WPA-Personal, WPA2-Personal, WPA-Personal/WPA2-Personal, wireless access control, support for hidden SSID

Software Features

  • Management: Management, Remote Management, System Status and Security log, Firmware Upgradable, Smart Setup, No Drivers Required.
  • WAN Setting: Basic Setting, Security Setting, Access Control, WPS
  • Virtual Setting: Port Range, DMZ, UPnP
  • DHCP: DHCP Server, Static IP Address Binding, DHCP Client List
  • Security Setting: URL Filter, MAC Filter, Client, WAN ping
  • Operation Mode: Wi-Fi Router, Access Point, Extender, WISP
Brand: EDIMAX
