Edimax Nano Access Point EW-7303HPn, N150 High Power Outdoor, 600mW Output, Built-in 12dBi Antenna, 5km Range, 802.11b/g/n, AP/WDS/Repeater Modes, Up to 150Mbps Data Rates, Supports WEP/WPA/WPA2 Encryption.

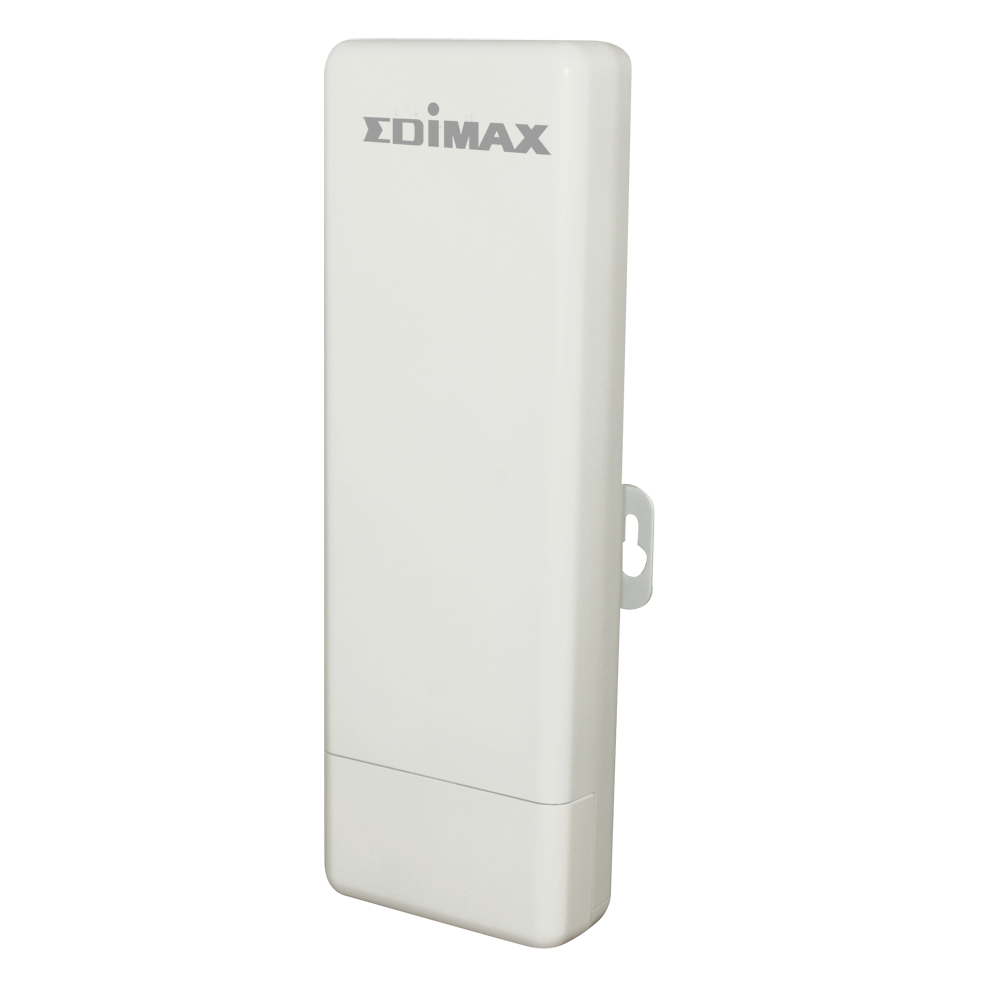

N150 High Power Outdoor Wireless Access Point/Range Extender with Built-in 12dBi Antenna (EW-7303HPn V2)
The EW-7303HPn V2 is a high-power outdoor range extender and access point that complies with wireless 802.11b/g/n standards. It features a built-in 12dBi antenna with a transmission range of over 5km*, providing enhanced coverage and signal strength. Its 600mW high power output and multiple operation modes make it an ideal choice for long-distance wireless connectivity.
Key Features
- High Power Output: 600mW power for long-distance wireless transmission, covering over 5 kilometers.*
- 12dBi High-Gain Antenna: Built-in directional panel antenna for increased transmission distance and signal stability.
- Multiple Operation Modes: AP mode, WDS mode, WDS with AP mode, and repeater mode supported.
- Wireless Data Rates: Up to 150Mbps, compliant with 802.11b/g/n standards.
- Encryption: Supports WEP, WPA, WPA2, and IEEE 802.1x authentication.
High Power Output for Enhanced Coverage
The EW-7303HPn V2 features a 600mW high power design, enabling it to cover distances of over 5 kilometers*. This makes it the best choice for long-distance wireless connectivity, combining cost-effectiveness with exceptional performance.
12dBi High-Gain Antenna
Equipped with a built-in 12dBi directional panel antenna, the EW-7303HPn V2 stabilizes wireless signals and extends transmission distance. It also includes an SMA connector for external antenna connections, allowing for further transmission boosts with high dBi or omni-directional antennas.
Multiple Operation Modes
The EW-7303HPn V2 supports various operation modes, including AP mode, WDS mode, WDS with AP mode, and repeater mode, making it versatile for a range of wireless applications.
Wireless 802.11n Standard
The EW-7303HPn V2 complies with IEEE 802.11b/g/n standards, offering data rates of up to 150Mbps and enhanced wireless coverage with reduced dead spots. When connected to compatible devices, the access point can achieve optimal wireless performance.
Specifications
- Product: 150Mbps Wireless High Power Outdoor Range Extender/Access Point
- Frequency Bands: 2.4 - 2.484GHz
- Flash: 4MB NOR Flash
- RAM: 32MB SDRAM
- LAN Port: 10/100M Passive PoE Port x 1
- Antenna: Internal: 12dBi directional panel antenna, External (optional): SMA connector
- Output Power:
- 11n: 22±1dBm, -89dBm
- 11g: 26±1dBm, -91dBm
- 11b: 27±1dBm, -93dBm
- Power: 12V DC, 1A
- Dimensions: 225 (H) x 77 (W) x 59 (D) mm
- Weight: 250g (8.82oz)
- Temperature: Operating: -20 to 70°C
- Humidity: Operating: 10-90% (non-condensing), Storage: Max. 95% (non-condensing)
- Certification: FCC
*Long range coverage requires an additional high power access point to receive the wireless signal from the EW-7303HPn V2. Coverage range from an EW-7303HPn directly to a computer/wireless device is significantly less.
