EDIMAX

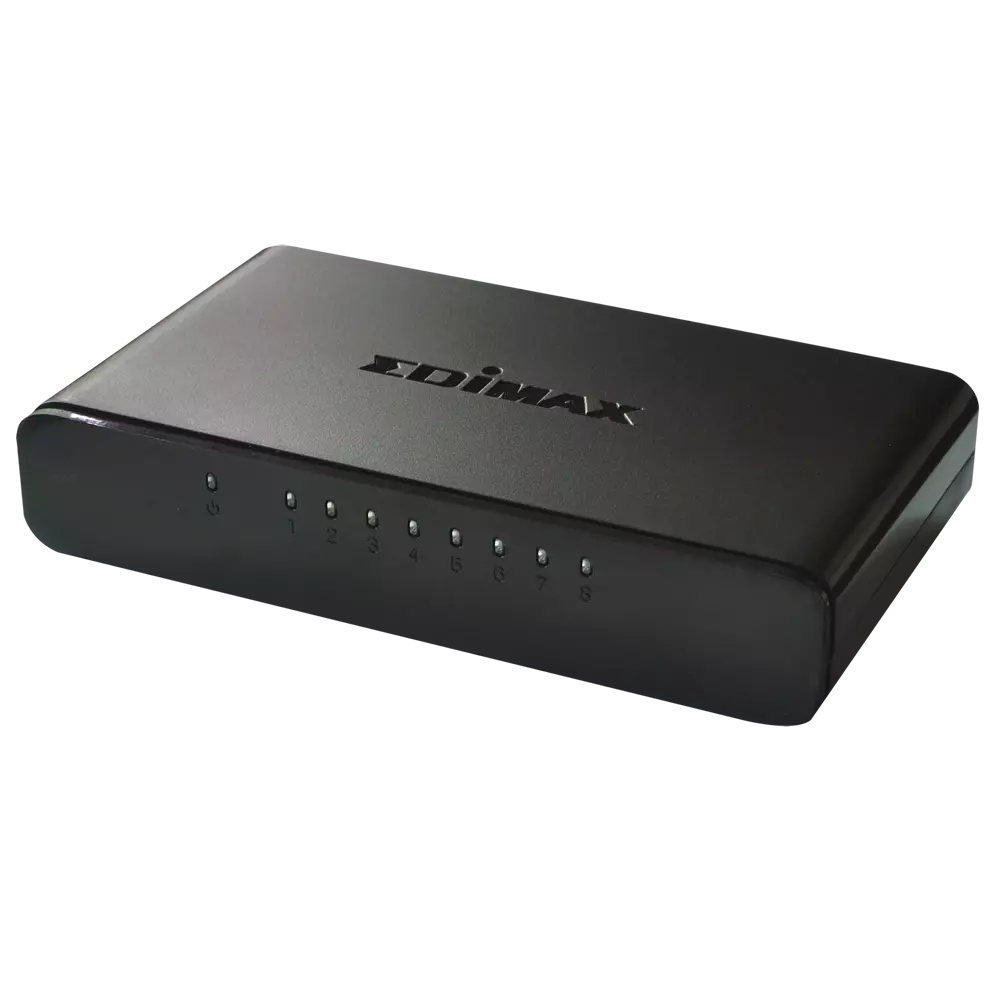

Edimax ES-3308P 10/100 Mbps Unmanaged Ethernet Desktop Switch

The ES-3308P is a 10/100 Mbps unmanaged Ethernet desktop switch designed to enhance network performance. Its compact and sleek design offers outstanding performance and high efficiency, using store-and-forward packet-switching technology to provide reliable data transfers, ideal for network connectivity in SOHO environments.

To extend home networks or meet online gaming, multimedia transfer, or streaming requirements, the ES-3308P is a cost-effective Fast Ethernet solution. The plug-and-play design ensures users can easily connect network devices such as PCs, network-attached storage, or print servers to a home network with no manual configuration necessary.

Features

  • Compact and Sleek Desktop Design: Ideal for SOHO environments.
  • Easy to Use: Plug-and-play installation.
  • High Efficiency: Wire-speed packet filtering and forwarding rate.
  • Reliable Data Transfer: Store-and-forward architecture filters fragment & CRC error packets.
  • Save up to 70% Power: Supports IEEE802.3az Energy Efficient Ethernet function.

Supports Auto-Negotiation

Each of the ES-3308P’s ports automatically detects whether connected network devices are running at 10Mbps or 100Mbps and half-duplex or full-duplex mode, adjusting the speed and mode accordingly to ensure easy and hassle-free operation.

Supports Non-Blocking Wire Speed

The ES-3308P forwards and receives traffic seamlessly with its non-blocking wire-speed. Every port of the ES-3308P supports speeds up to 200Mbps in full-duplex mode simultaneously, providing full wire speed to connected devices and allowing you to run a high-speed network smoothly.

IEEE Energy Efficient Ethernet (EEE) Compliance

Along with the Fast Ethernet speeds critical for next-generation network applications, the ES-3308P offers environmental efficiency. To comply with the IEEE802.3az standard, the ES-3308P provides power-saving functionality to reduce energy consumption and save costs:

  • Inactive Link Detection: When a network device is shut down and/or an inactive link is detected, the power usage adjustment feature automatically reduces power usage. The switch’s power consumption will be dynamically adjusted according to the link status and the number of active network devices.
  • Cable Length Detection: Devices equipped with this feature automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.

Easy to Use

The ES-3308P is plug-and-play and supports a wide range of network protocols. Installation and network management are quick and straightforward, and clear and convenient LED indicators display easy-to-read port and switch status.

Specifications

  • Power Requirement: DC 5V 0.6A
  • Power Consumption: 1.405 Watts (Max)
  • Dimensions: 137 x 76 x 25.5 mm (L x W x H)
  • Weight: 126g
  • Humidity: Operating: 10 to 90% RH (Non-condensing); Storage: 5 to 90% RH (Non-condensing)
  • Temperature: Operating: 0 to 40°C; Storage: -20 to 70°C
  • Certifications: CE, FCC Class B

Filtering / Forwarding Rates

  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet

Transmission Media

  • 10BASE-T Cat. 3, 4, 5 UTP/STP
  • 100BASE-TX Cat. 5 UTP/STP

LED Indicators

  • Per Port: Link/Act
  • Per Unit: Power

Filtering / Forwarding Rates

  • 100Mbps Port – 148,800pps
  • 10Mbps Port – 14,880pps
Brand: EDIMAX
