EDIMAX

5-Port Fast Ethernet Desktop Switch

Model

  • Model: ES-3305P

Overview

The ES-3305P is a 10/100 Mbps unmanaged Ethernet desktop switch designed to enhance network performance. Its compact, sleek design offers outstanding performance and high efficiency, using store-and-forward packet-switching technology to provide reliable data transfers, ideal for network connectivity in SOHO environments.

To extend home networks or meet online gaming, multimedia transfer, or streaming requirements, the ES-3305P is a cost-effective Fast Ethernet solution. The plug-and-play design ensures users can easily connect network devices such as PCs, network-attached storage, or print servers to a home network with no manual configuration necessary.

Specifications

  • Compact and Sleek Design: Ideal for SOHO environments
  • Easy to Use: Plug-and-play installation
  • High Efficiency: Wire-speed packet filtering and forwarding rate
  • Reliable Data Transfer: Store-and-forward architecture filters fragment & CRC error packets
  • Power Saving: Save up to 70% power with IEEE802.3az Energy Efficient Ethernet function

Key Features

  • Supports Auto-Negotiation: Each port automatically detects connected devices' speed (10Mbps or 100Mbps) and mode (half-duplex or full-duplex) for hassle-free operation.
  • Supports Non-Blocking Wire Speed: Each port supports speeds up to 200Mbps in full-duplex mode, allowing seamless traffic forwarding and receiving.
  • IEEE Energy Efficient Ethernet (EEE) Compliance: Reduces energy consumption and saves costs.
  • Inactive Link Detection: Automatically reduces power usage when a network device is shut down or an inactive link is detected.
  • Cable Length Detection: Automatically adjusts power usage based on the length of connected Ethernet cables.

Standard Features

  • Filtering / Forwarding Rates:
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX
    • IEEE 802.3x Flow Control
    • IEEE 802.3az Energy Efficient Ethernet

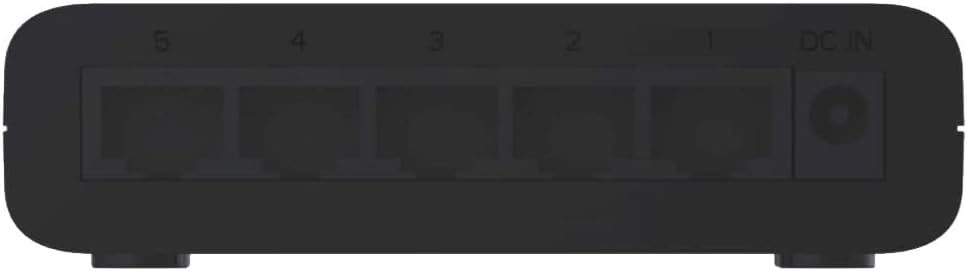

  • Ports: 5 RJ-45 Ports
  • MAC Address Table: 1K
  • Buffer Memory: 56K
  • Transmission Method: Store and Forward
  • Transmission Media:
    • 10BASE-T Cat. 3, 4, 5 UTP/STP
    • 100BASE-TX Cat. 5 UTP/STP
  • LED Indicators:
    • Per Port: Link/Act
    • Per Unit: Power
  • Power Requirement: DC 5V 0.6A
  • Power Consumption: 1.07 Watts (Max)
  • Dimensions: 98 × 71 × 25.5 mm (L x W x H)
  • Weight: 92 g
  • Operating Temperature: 0 to 40°C
  • Storage Temperature: -20 to 70°C
  • Humidity:
    • Operating: 10 to 90% RH (Non-condensing)
    • Storage: 5 to 90% RH (Non-condensing)
  • Certifications: CE, FCC Class B
Brand: EDIMAX
