Dahua DHT IPC HDBW2431EP-S-S2 Lite Series Camera - 4MP, H.265+, 2.8mm Lens, Starlight Technology, IP67 Weatherproof, IK10 Impact Resistant, Wide Dynamic Range, Intelligent Video Analysis, IR Up to 30m, SD Card Storage.
Dahua DHT IPC HDBW2431EP-S-S2 Lite Series Camera - 4MP, H.265+, 2.8mm Lens, Starlight Technology, IP67 Weatherproof, IK10 Impact Resistant, Wide Dynamic Range, Intelligent Video Analysis, IR Up to 30m, SD Card Storage.

Dahua DHT IPC HDBW2431EP-S-S2 Lite Series Camera - 4MP, H.265+, 2.8mm Lens, Starlight Technology, IP67 Weatherproof, IK10 Impact Resistant, Wide Dynamic Range, Intelligent Video Analysis, IR Up to 30m, SD Card Storage.

DHUA

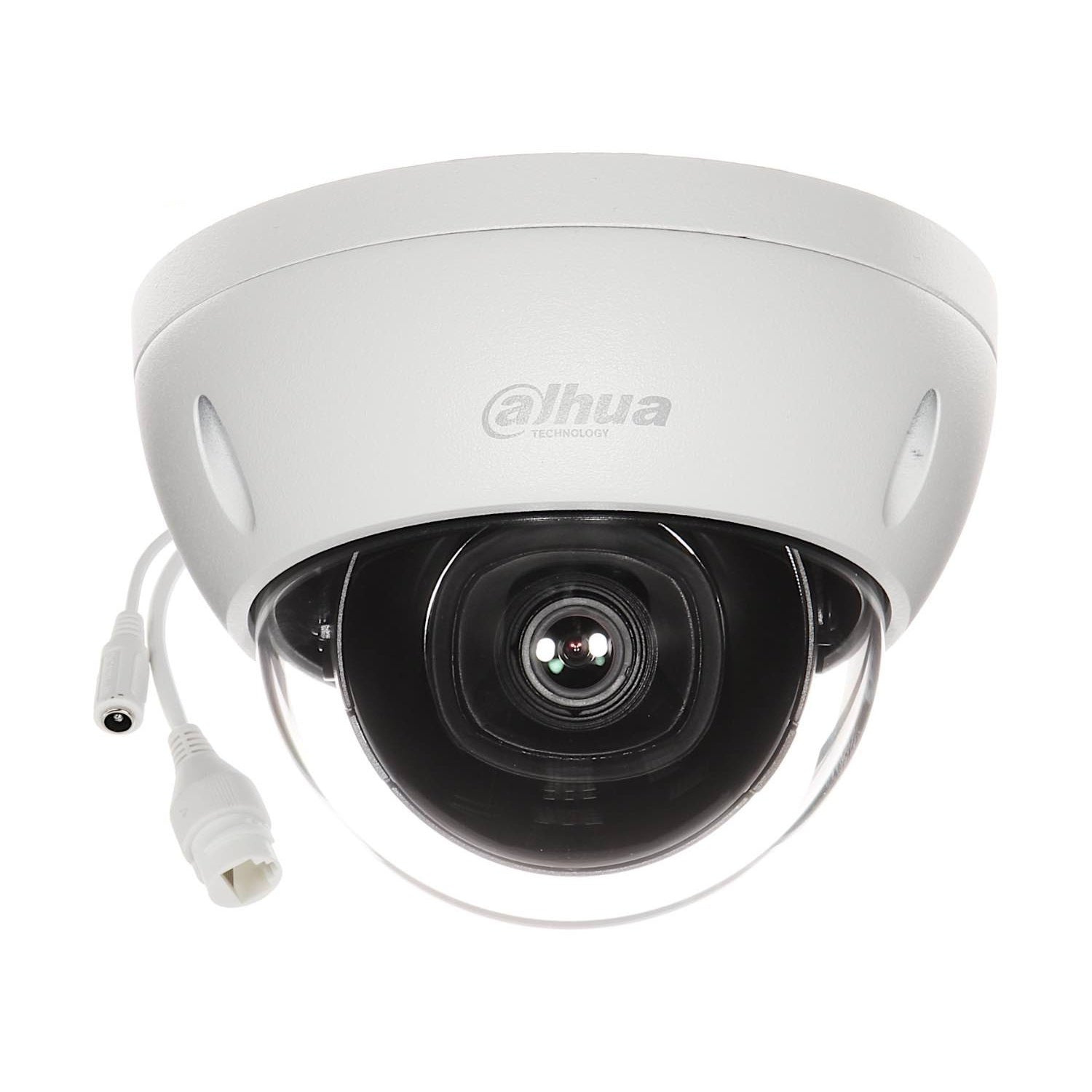

DH IPC HDBW2431E S S2 Lite Series Camera

System Overview

With upgraded H.265 encoding technology, the Dahua Lite series camera has efficient video encoding capacity, saving bandwidth and storage space. This camera adopts the latest starlight technology, providing better colorful images in low illumination environments. It supports SD card storage, waterproof function, dust proof function, and tamper proof function, complying with the standards of IP67 and IK10.

Functions

  • Smart (H.265+ & H.264+): Advanced algorithm of auto stream control for higher efficiency than H.265 & H.264, providing high quality video while reducing storage and transmission costs.
  • Wide Dynamic Range (WDR): Clear details in environments with strong brightness contrast.
  • Starlight: Provides clear colorful video even in low illumination conditions.
  • Intelligent Video Analysis (IVS): Supports intelligent detection features such as tripwire and intrusion.
  • Protection:
    • IP67: Dust proof and can operate normally after being submerged in 1 meter of water for 30 minutes.
    • IK10: Impact resistant enclosure that can withstand punches from a 5 kg hammer from a height of 40 m.
    • Wide Voltage: Allows ±30% input voltage tolerance, suitable for outdoor environments with unstable voltage.

Technical Specification

  • Camera:
    • Image Sensor: 1/3” 4 Megapixel progressive CMOS
    • Effective Pixels: 2688 (H) × 1520 (V)
    • ROM: 128 MB
    • RAM: 128 MB
    • Scanning System: Progressive
    • Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
    • Min. Illumination: 0.008 Lux @ F1.6
    • IR Distance: 30 m (98.43 ft)
    • IR On/Off Control: Auto/Manual
    • IR LEDs Number: 3
    • Pan/Tilt/Rotation Range:
      • Pan: 0°–355°
      • Tilt: 0°–65°
      • Rotation: 0°–355°
  • Lens:
    • Lens Type: Fixed focal
    • Mount Type: M12
    • Focal Length: 2.8 mm / 3.6 mm
    • Max. Aperture: F1.6
    • Field of View:
      • 2.8 mm: Pan: 102.0°, Tilt: 55.0°, Diagonal: 121.0°
      • 3.6 mm: Pan: 84.0°, Tilt: 45.0°, Diagonal: 100.0°
    • Iris Type: Fixed aperture
    • Close Focus Distance: 2.8 mm: 0.9 m (2.95 ft); 3.6 mm: 1.6 m (5.25 ft)
  • DORI Distance:
    • 2.8 mm: Detect 56 m (183.73 ft), Observe 22.4 m (73.49 ft), Recognize 11.2 m (36.75 ft), Identify 5.6 m (19.37 ft)
    • 3.6 mm: Detect 80 m (262.47 ft), Observe 32 m (104.99 ft), Recognize 16 m (52.49 ft), Identify 8 m (26.25 ft)
  • Smart Event: IVS Analytics: Tripwire; intrusion
  • Video:
    • Video Compression: H.265; H.264; H.264B; MJPEG
    • Smart Codec: Yes
    • Video Frame Rate:
      • Main stream: 2688 × 1520 (1 fps 20 fps), 2560 × 1440 (1 fps 25/30 fps)
      • Sub stream: 704 × 576 (1 fps 25 fps), 704 × 480 (1 fps 30 fps)
    • Stream Capability: 2 streams
    • Resolution:
      • 2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p; 1.3M; 720p; D1; VGA; CIF
    • Bit Rate Control: CBR/VBR
    • Video Bit Rate: H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
    • Day/Night: Auto (ICR)/Color/B/W
    • BLC: Yes
    • HLC: Yes
    • WDR: 120 dB
    • White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
    • Gain Control: Auto/Manual
    • Noise Reduction: 3D DNR
    • Motion Detection: OFF/ON (4 areas, rectangular)
    • Region of Interest (RoI): Yes (4 areas)
    • Smart IR: Yes
    • Image Rotation: 0°/90°/180°/270° (supports 90°/270° with 2688 ×1520 resolution and lower)
    • Mirror: Yes
    • Privacy Masking: 4 areas
  • Network:
    • Network: RJ 45 (10/100 Base T)
    • Protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
    • Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
    • User/Host: 20
    • Edge Storage: Dahua Cloud; FTP; SFTP; Micro SD Card (supports max. 256 GB); NAS
    • Browser Compatibility: IE, Chrome, Firefox
    • Management Software: Smart PSS; DSS; DMSS
    • Mobile Phone Compatibility: iOS; Android
  • Certifications:
    • CE LVD: EN60950 1
    • CE EMC: Electromagnetic Compatibility Directive 2014/30/EU
    • FCC: 47 CFR FCC Part 15, Subpart B
    • UL/CUL: UL60950 1 CAN/CSA C22.2 No.60950 1 07
  • Power:
    • Power Supply: 12V DC/PoE (802.3af)
    • Power Consumption: < 5.2W
Brand: DHUA
