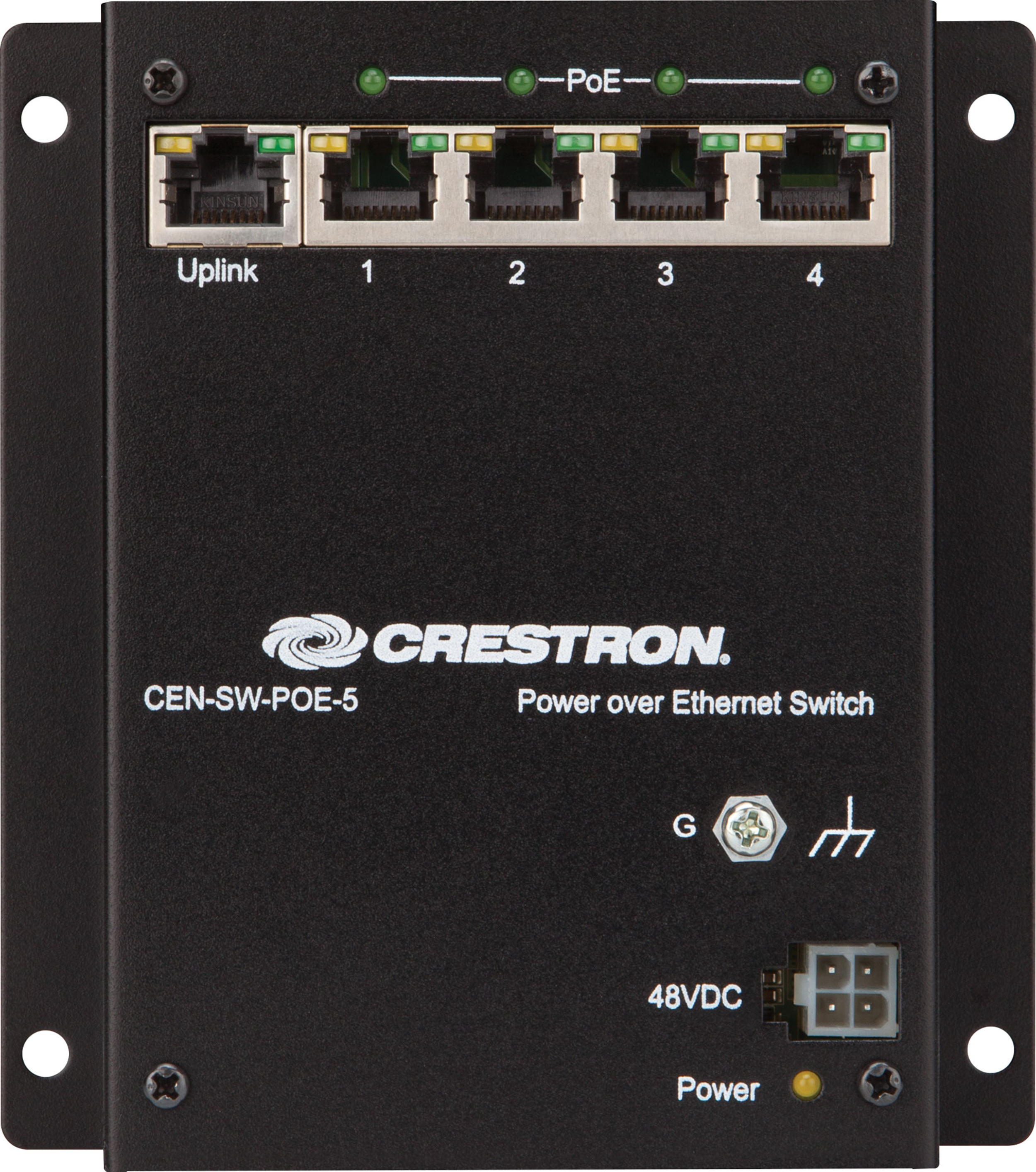

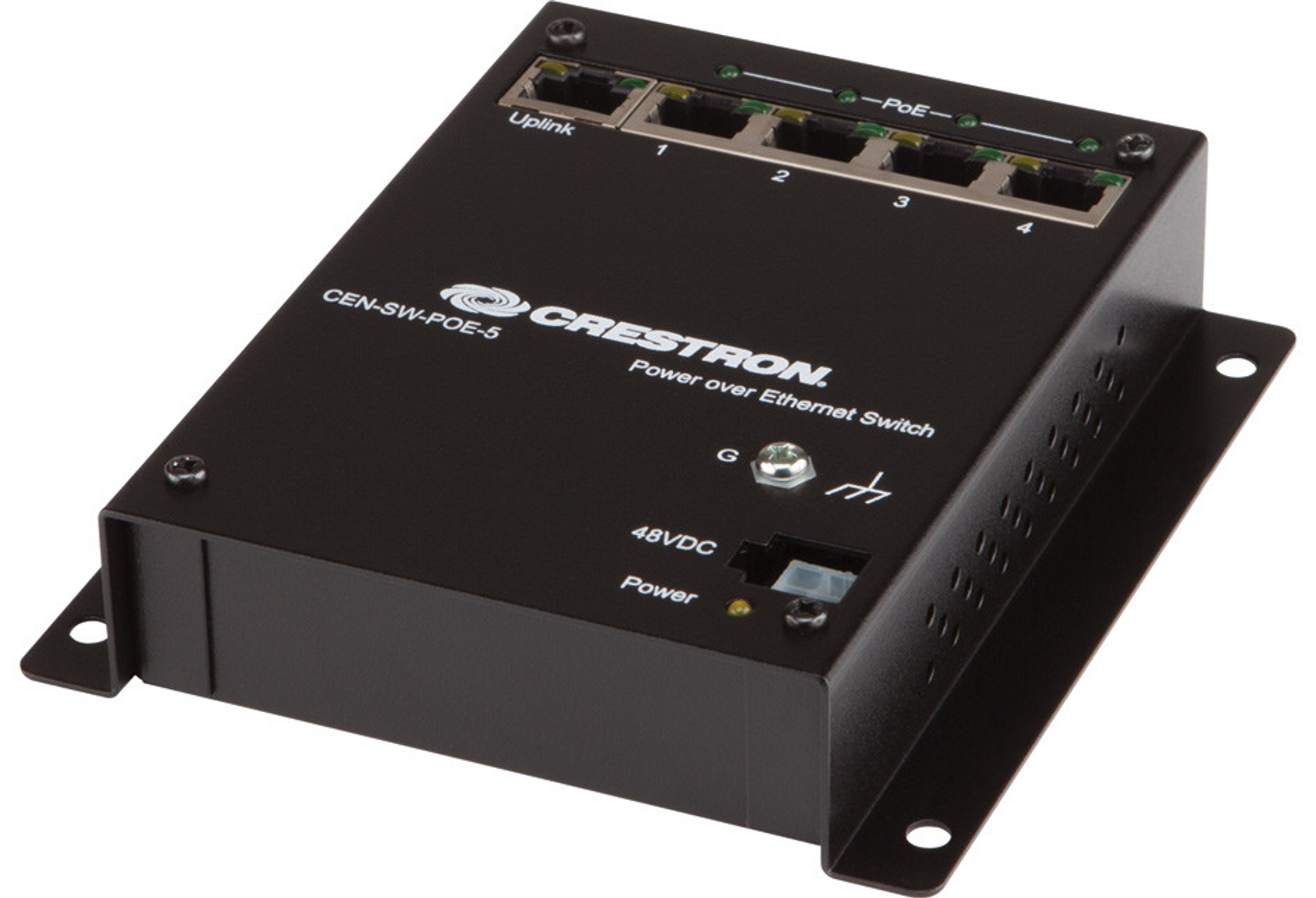

CRESTRON SWITCH CEN-SW-POE-5 5-Port Gigabit Ethernet Switch, PoE on 4 Ports, IEEE 802.3af Compliant, 10/100/1000Base-T Ports, Store-and-Forward Transmission, Metal Enclosure
5-Port Gigabit Ethernet Switch with PoE
A surface-mountable 5-port Gigabit Ethernet switch featuring PoE on four ports, designed for versatile networking solutions.
Ethernet Specifications
- Ports: (5) 10Base-T/100Base-TX/1000Base-T Ethernet
- Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, & 802.3af
- Transmission Method: Store-and-Forward
Indicators
- PoE 1 – 4: (4) green LEDs, indicate a PoE powered device is connected to each corresponding Ethernet port
- Uplink: (1) green LED and (1) amber LED; indicate Ethernet link status, speed, and activity at the Uplink port
- 1 – 4: (1) green LED and (1) amber LED per each of (4) Ethernet ports; indicate Ethernet link status, speed, and activity at each corresponding port
- Power: (1) yellow LED, indicates operating power supplied via external power pack
Connectors
- Uplink: (1) 8-wire RJ45, female; 10Base-T/100Base-TX/1000Base-T Ethernet port
- 1 – 4: (4) 8-wire RJ45, female; 10Base-T/100Base-TX/1000Base-T Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs
- G: (1) 6-32 screw, chassis ground lug
- 48VDC: (1) 4-pin (2x2) rectangular connector; 48 Volt DC power input (power pack included)
Power Requirements
- Power Pack: 1.25 Amps @ 48 Volts DC; 100-240 Volts AC 50/60 Hz power pack included
Environmental Specifications
- Temperature: 32° to 104°F (0° to 40°C)
- Humidity: 10% to 90% RH (non-condensing)
- Heat Dissipation: 10 BTU/hour
Enclosure
- Chassis: Metal, black finish, with (2) integral mounting flanges, vented top and bottom
- Mounting: Freestanding, surface mount, or attach to a single rack rail
Dimensions
- Height: 5.06 in (129 mm)
- Width: 4.66 in (119 mm)
- Depth: 1.17 in (30 mm)
Weight
- 13.5 oz (381 g)
