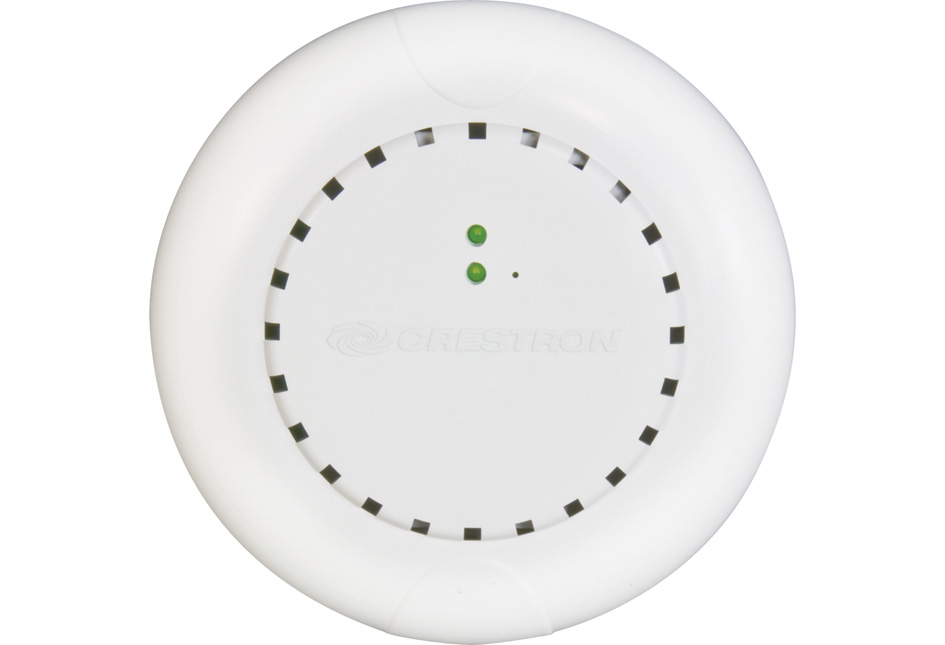

Crestron CEN-WAP-ABG-CM Wireless Access Point, IEEE 802.11a/b/g, Supports Crestron Wi-Fi Touch Screens, Up to 19 dBm Transmit Power, Power over Ethernet (PoE) Compatible

Wireless Access Point for Crestron Devices

A versatile, full-featured wireless access point designed for easy setup of a wireless network specifically tailored for Crestron Wi-Fi Touch Screens and Handheld Remotes.

Wireless Specifications

• Transceiver: IEEE 802.11a/b/g Wi-Fi (5.8 or 2.4 GHz 2-way RF)
• 64, 128, & 152-bit WEP encryption
• WPA & WPA2 with TKIP & AES
• Transmit Power: Up to 19 dBm

Ethernet Specifications

• 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery
• Full/half duplex
• DHCP client and server
• SNMP, IEEE 802.3af compliant

Controls & LED Indicators

• LAN: (1) Green LED, indicates wired Ethernet activity and link status
• Wi-Fi: (1) Green LED, indicates Wi-Fi activity and connection status
• Reset: (1) Recessed miniature pushbutton for hardware reset

Connectors – Rear Panel

• NETWORK PoE: (1) 8-wire RJ45, female
• 10Base-T/100Base-TX Ethernet port, Power over Ethernet compliant
• Connects to LAN via a 802.3af compliant PoE power source

Power Requirements

• Power over Ethernet: IEEE 802.3af Class 0 PoE Powered Device

Construction

• Chassis: Plastic, paintable white textured finish
• Mounting: Mounts to a ceiling in a 1-gang plaster ring or electrical box (2 inch deep minimum)

Environmental Specifications

• Temperature: 32° to 104°F (0° to 40°C)
• Humidity: 10% to 90% RH (non-condensing)
• Heat Dissipation: 11 BTU/Hr

Dimensions

• Height: 2.54 in (65 mm)
• Diameter: 4.73 in (120 mm)

Weight

• 6.0 oz (168 g)
