SHOW CSV-540R WT201 Wireless Lectern Amplifier Body Replacement – Suitable for CSV/CSU Series

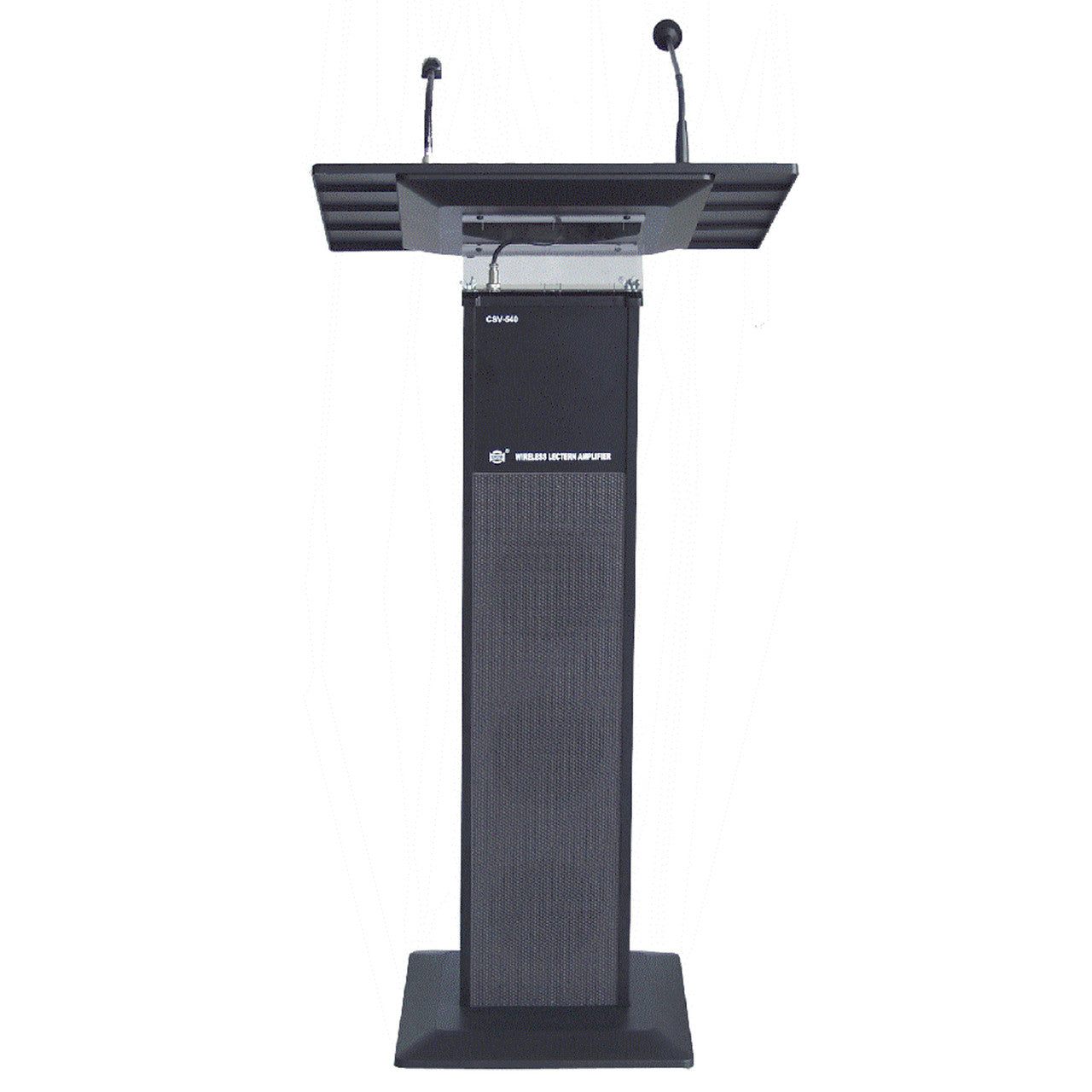

CSV/CSU Series Wireless Lectern Amplifier

The CSV/CSU series wireless lectern amplifier is designed for speech, teaching, and meetings. It is equipped with 3 built-in wide-band speakers, a 40W RMS amplifier, a gooseneck microphone, and optional VHF/UHF wireless microphones for convenient and versatile applications.

Features

• RMS 40W amplifier built-in for powerful sound output.
• Comes with 3 wide-band speakers for superior audio quality.
• Equipped with a gooseneck microphone for easy speech delivery.

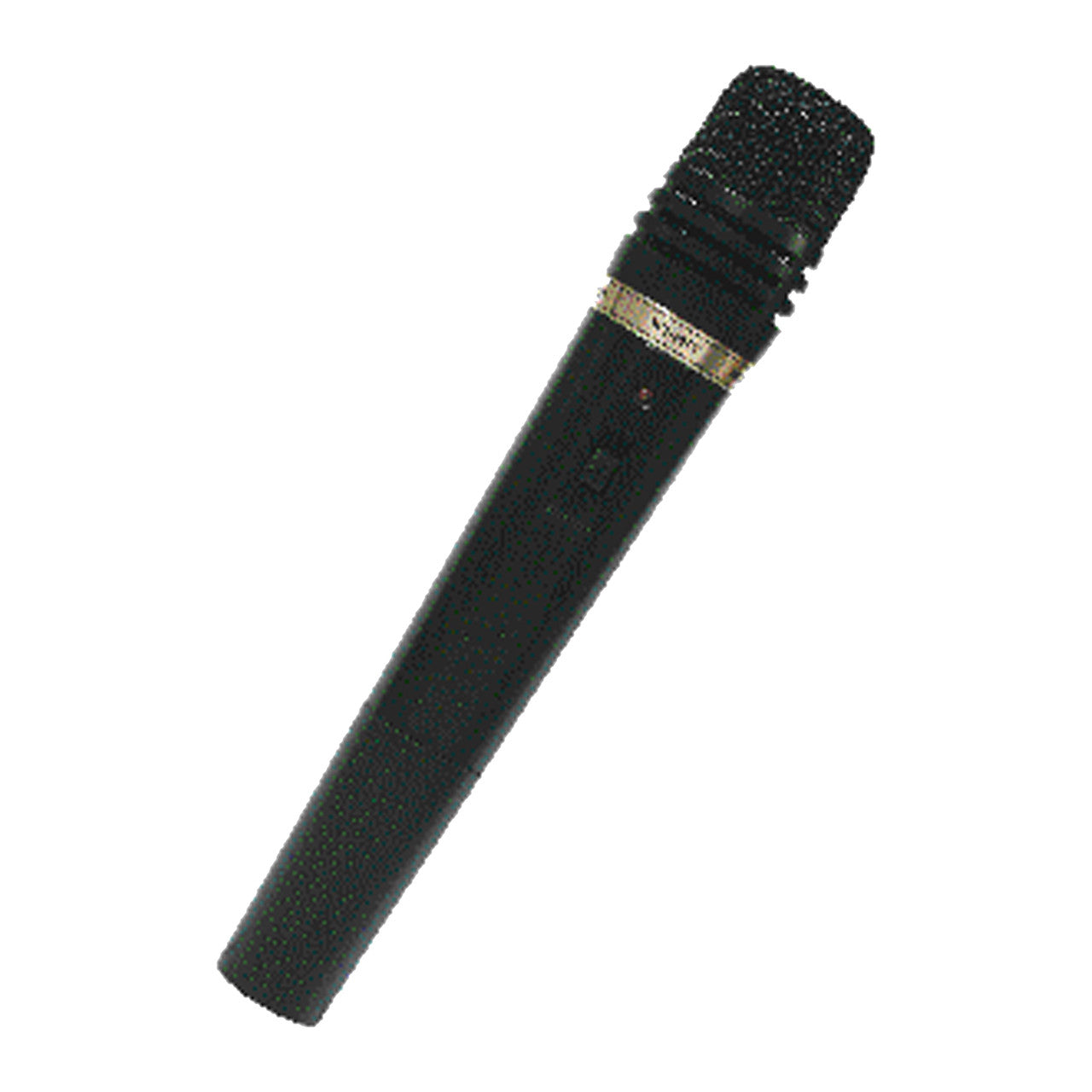

• Optional wireless microphones: Choose between Handheld mic or Bodypack mic.
• Includes an MP3 module with USB, SD, and MMC interface, plus a "Recording" function.
• Features Voice Priority function for microphone priority during use.

Specifications

• Power Supply: RMS 40W
• MP3 Module: MP3 Player with recording function
• Power Consumption: 90W
• T.H.D.: <0.5% (at AUX 1W)
• S/N Ratio: >45dB
• Input Sensitivity:
  • MIC1: ?-50dBv ±2dB / 680?
  • MIC2: ?-55dBv ±2dB / 680?
  • LINE: -2dBv ±2dB / 50K?
  • AUX1: -20dBv ±2dB / 10K?
  • AUX2: -15dBv ±2dB / 30K?
  • AUX3: -15dBv ±2dB / 30K?
  • AUX4: -15dBv ±2dB / 30K?
• Wireless Receiver Module: WTU-221 (Non-diversity)
• Frequency Response: 100Hz - 16KHz
• Receiving Mode: Quartz fixed frequency
• AC Power: 110~120V / 60Hz or 240V / 50Hz
• Channel: Dual-channel
• REC Output: 1V / 0dB (at AUX -20dBv)
• Volume Control: BASS: ±10dB / TREBLE: ±10dB
• Adjustment: FM (F3E)
• Receiving Range: 15-25m (Non-obstacle)
• Color: White
