TUYA Access Control OP24D WIFI - No touch infrared exit button with Tuya Smart APP, outputs NO/NC signals, reading distance 1-10 cm, operating voltage DC 9-12V, acrylic panel, operating temperature 30-60°C, humidity 20%-80%.

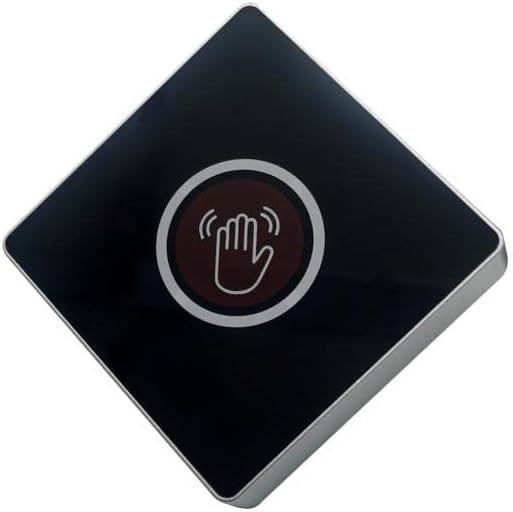

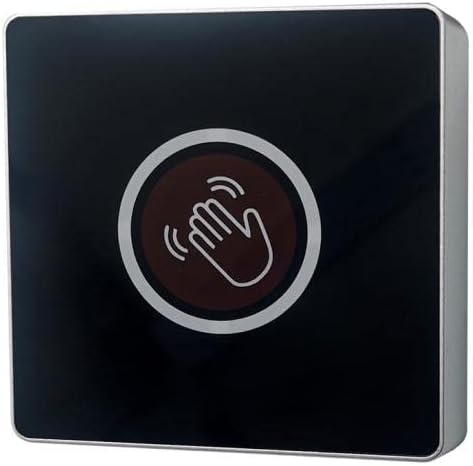

OP24 Series No Touch Infrared Exit Button with Tuya Smart APP
The OP24 series Exit Button is a no touch infrared exit button featuring Tuya smart APP functionality. It is very stable and sensitive, with automatic adaptability to ambient temperature and humidity, unaffected by weather or temperature changes. The device outputs NO or NC signals when it recognizes a gesture. The indicator light shows red when in standby and green when the signal is recognized.
Product Parameters
| Parameter | Description |
|---|---|
| S4A Model | OP24D |
| Product Name | Contactless Infrared Exit Button with Tuya Smart APP |
| Dimensions | 86L x 86W x 21H (mm) |
| Operating Voltage | DC 9 DC 12V |
| Relay | NO/NC/OM |
| Material | Acrylic Panel |
| Reading Distance | 1 ~ 10 cm |
| Operating Current | < 600 mA |
| Operating Temperature | 30 ~ 60 |
| Operating Humidity | 20% 80% |
| Unit Weight | 0.12 KG |
| Standard Package | 100 PCS/carton |
| Carton Weight | 12 KG |
| Carton Size | 57.5 x 47.5 x 23.7 (cm) |
