PROMAG WEC200 Networkable Access Controller, 2K Memory, Supports 50 Users, Wiegand to Ethernet, 2 Relay Outputs, Door Left Open Alarm, TCP/UDP Protocols.

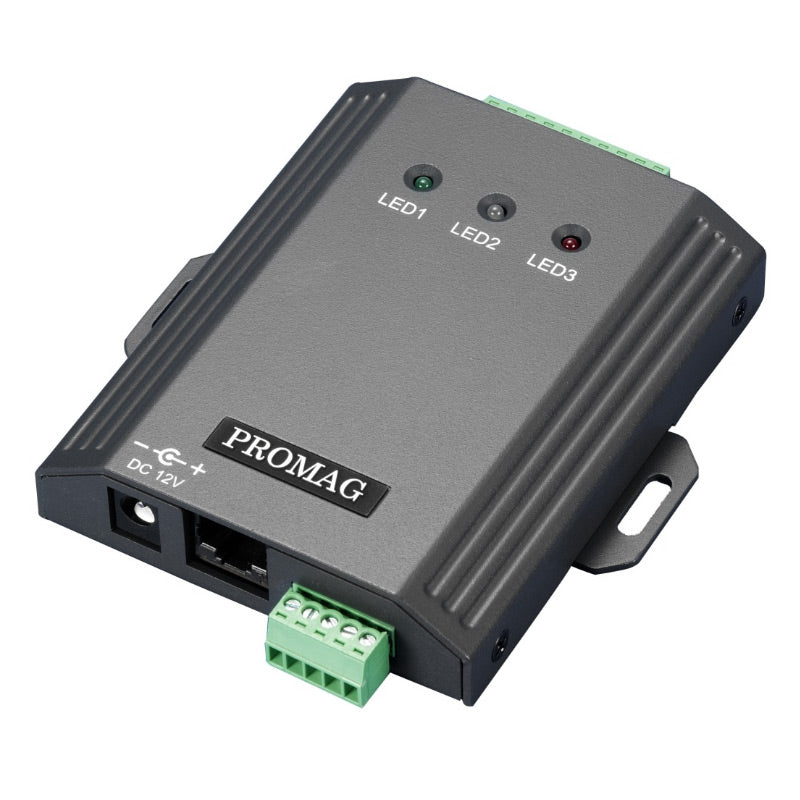

WEC200 Networkable Access Controller

The WEC200 is a compact networkable access controller designed for one-door access. It features interface conversion from Wiegand to Ethernet, allowing it to connect to various types of Wiegand readers such as magnetic stripe readers, RFID readers, or fingerprint readers. With networkable access, it offers the advantages of central control and easy viewing of event log reports.

Key Features

• Memory Capacity: 2K memory, capable of storing up to 50 users, 10 visitors, and 20 time logs.
• Master Card Functionality: Allows for adding or deleting visitor authority directly from an external reader.
• Input Sensors: Features 2 input sensors for door unlock detection and exit button press detection.
• Relay Outputs: Provides 2 relay outputs for external alarms and electric locks.
• Door Left Open Alarm: Alerts when the door is left open.
• Enhanced Security: Separate control unit and reader ensure higher security.
• Network Connectivity: Ethernet connection to PC and independent offline operation capability.

Specifications

• Communication: One Wiegand port, One 10/100 BaseT Ethernet Port
• Available Wiegand Formats: 26, 30, 34, 35, 37, 38, 42 bits
• Power Consumption: 140mA at 12VDC
• Protocols: Communicates with server over the network using TCP or UDP protocols
• Indication: Three LEDs display status information, One built-in buzzer
• Inputs/Outputs: 2 sets of inputs, 2 sets of relay outputs (including N.C/ N.O, Common)
• Dimensions: 100 x 96.8 x 24.35 mm
• Operating Environment:
  • Operating Temperature: 0-55°C
  • Storage Temperature: -10 to 55°C
  • Humidity: 10-90% relative humidity

Ordering Information

• WEC200-01: Access Controller for one door
• PCR943-02: 125KHz RFID reader, Wiegand 42 bits
• GP30-10: 125KHz RFID Reader, Wiegand 26 bits
• MF7-20: Mifare Reader
• SF600-10: Fingerprint Reader
